Miniature & small ball bearings Deep groove ball bearings
6201
Outline
| NMB Parts No. | 6201 |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | 6201 |
| Material of Rings | Chromium Steel |
| Ring Type | [Radial] Standard |

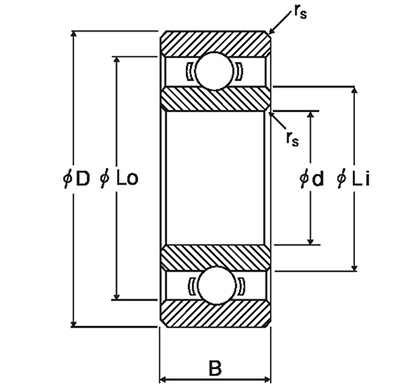

| Inner Diameter (d) [mm] |
12.000 |
| Outer Diameter (D) [mm] |
32.000 |
| Width (B) [mm] |
10.000 |
| Chamfer (rs min) [mm] |
0.600 |
| Reference Diameter Outer (Lo) [mm] |
27.550 |
| Reference Diameter Inner (Li) [mm] |
16.930 |
| Ball Size (DW) [mm] |
5.9531 |
| Ball Complement (Z) |
7 |
| Dynamic Load Rating (Cr) [N] |
6805 |
| Static Load Rating (Cor) [N] |
3049 |
| Inner Diameter (d) [in] |
0.4724 |
| Outer Diameter (D) [in] |
1.2598 |
