Outline
| NMB Parts No. | 6202ZZ |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | 6202ZZ |
| Material of Rings | Chromium Steel |
| Ring Type | [Radial] basic type |

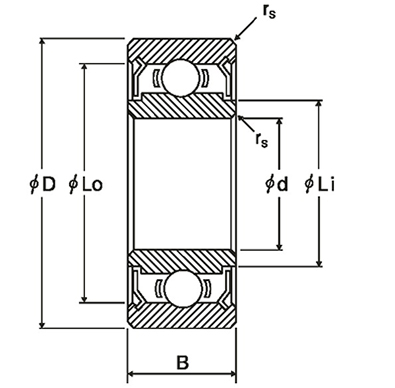

| Inner Diameter(d) [mm] |
15.000 |
| Inner Diameter(d)Tolerance [mm] |
Compliant with JIS standards |
| Outer Diameter(D) [mm] |
35.000 |
| Outer Diameter(D)Tolerance [mm] |
Compliant with JIS standards |
| Width(B) [mm] |
11.000 |
| Width(B)Tolerance [mm] |
Compliant with JIS standards |
| Chamfer(rs min) [mm] |
0.600 |
| Reference Diameter Outer(Lo) [mm] |
30.710 |
| Reference Diameter Inner(Li) [mm] |
19.560 |
| Ball Size(DW) [mm] |
6.3500 |
| Ball Complement(Z) | 7 |
| Dynamic Load Rating(Cr) [N] |
7746 |
| Static Load Rating(Cor) [N] |
3579 |
| Inner Diameter(d) [in] |
0.5906 |
| Outer Diameter(D) [in] |
1.3780 |
