Miniature & small ball bearings Thrust ball bearings without raceway grooves
DDT-1150
Outline
| NMB Parts No. | DDT-1150 |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | - |
| Material of Rings | Stainless Steel |
| Ring Type | [Thrust] without groove |

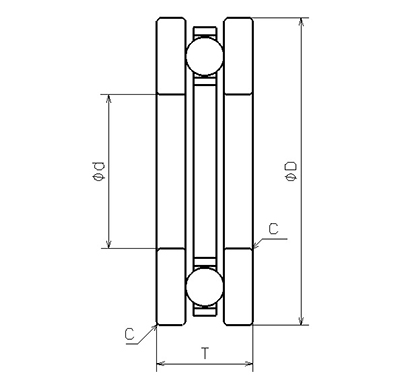

| Inner Diameter (d) +0.040 +0.020 [mm] |
5.000 |
| Outer Diameter (D) +0 -0.011 [mm] |
11.000 |
| Height (T) +0 -0.075 [mm] |
4.500 |
| Chamfer (C) [mm] |
0.2 |
| Ball Size (DW) [mm] |
1.5875 |
| Ball Complement (Z) |
8 |
| Inner Diameter (d) [in] |
0.1969 |
| Outer Diameter (D) [in] |
0.4331 |
