Thrust ball bearings can only support axial loads. There are two types: one with and one without raceway grooves in the raceway.
-
-

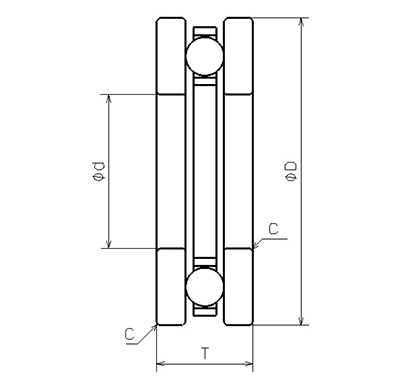

NMB Parts No. DDT-1570 Metric or Inch Metric ISO/JIS - Material of Rings Stainless Steel Ring Type [Thrust] without groove Inner Diameter(d)
[mm]7.000 Inner Diameter(d)Tolerance
[mm]0.040/0.020 Outer Diameter(D)
[mm]15.000 Outer Diameter(D)Tolerance
[mm]0/-0.011 Height(T)
[mm]5.000 Height(T)Tolerance
[mm]0/-0.075 Chamfer(C)
[mm]0.3 Ball Size(DW)
[mm]2.0000 Ball Complement(Z) 7 Inner Diameter(d)
[in]0.2756 Outer Diameter(D)
[in]0.5906
-
