Outline

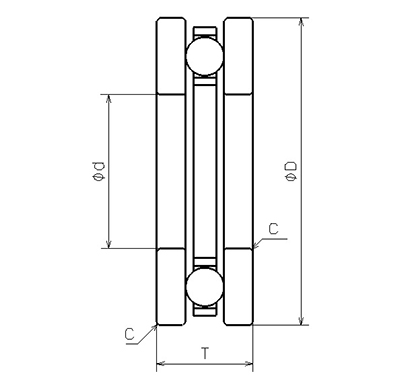

| NMB Parts No. | DDT-1790 |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | - |
| Material of Rings | Stainless Steel |
| Ring Type | [Thrust] without groove |
| Inner Diameter(d) [mm] |
9.000 |
| Inner Diameter(d)Tolerance [mm] |
0.040/0.020 |
| Outer Diameter(D) [mm] |
17.000 |
| Outer Diameter(D)Tolerance [mm] |
0/-0.011 |
| Height(T) [mm] |
5.000 |
| Height(T)Tolerance [mm] |
0/-0.075 |
| Chamfer(C) [mm] |
0.3 |
| Ball Size(DW) [mm] |
2.0000 |
| Ball Complement(Z) | 9 |
| Inner Diameter(d) [in] |
0.3543 |
| Outer Diameter(D) [in] |
0.6693 |
