Miniature & small ball bearings Thrust ball bearings with raceway grooves

DDT-1810DSG

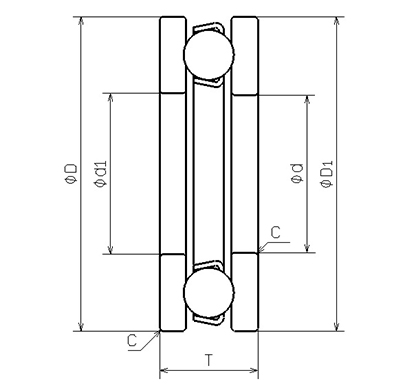

Outline

NMB Parts No. DDT-1810DSG
Metric or Inch Metric
ISO/JIS -
Material of Rings Stainless Steel
Ring Type [Thrust] with groove
Inner Diameter
(d)
+0
-0.008
[mm]
10.000
Inner Diameter
(d1)
±0.050
[mm]
10.200
Outer Diameter
(D)
+0
-0.011
[mm]
18.000
Outer Diameter
(D1)
+0
-0.050
[mm]
18.000
Height
(T)
+0
-0.075
[mm]
5.500
Chamfer
(C)
[mm]
0.3
Ball Size
(DW)
[mm]
3.1750
Ball Complement
(Z)
12
Dynamic Load Rating
(Ca)
[N]
5119
Static Load Rating
(Coa)
[N]
7452
Inner Diameter
(d)
[in]
0.3937
Outer Diameter
(D)
[in]
0.7087

Download

CAD Data

Our CAD data is downloadable through the "PARTcommunity" service provided by CADENAS WEB2CAD Inc.. In order to use this service, registration to "PARTcommunity" is required, but is Available free of charge. Please click "CAD data [PARTcommunity]" to download 2D/ 3D CAD data for our products.
