Miniature & small ball bearings Thrust ball bearings with raceway grooves

DDT-830DSG

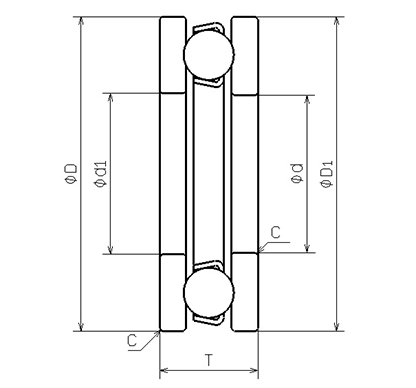

Outline

NMB Parts No. DDT-830DSG
Metric or Inch Metric
ISO/JIS -
Material of Rings Stainless Steel
Ring Type [Thrust] with groove
Inner Diameter
(d)
+0
-0.008
[mm]
3.000
Inner Diameter
(d1)
±0.050
[mm]
3.100
Outer Diameter
(D)
+0
-0.011
[mm]
8.000
Outer Diameter
(D1)
+0
-0.050
[mm]
8.000
Height
(T)
+0
-0.075
[mm]
3.500
Chamfer
(C)
[mm]
0.2
Ball Size
(DW)
[mm]
2.0000
Ball Complement
(Z)
7
Dynamic Load Rating
(Ca)
[N]
1788
Static Load Rating
(Coa)
[N]
1725
Inner Diameter
(d)
[in]
0.1181
Outer Diameter
(D)
[in]
0.3150

Download

CAD Data

Our CAD data is downloadable through the "PARTcommunity" service provided by CADENAS WEB2CAD Inc.. In order to use this service, registration to "PARTcommunity" is required, but is Available free of charge. Please click "CAD data [PARTcommunity]" to download 2D/ 3D CAD data for our products.
