F17PM-K(42□ 1.8°)

This model is expected more long life in comparison to standard □42 type.

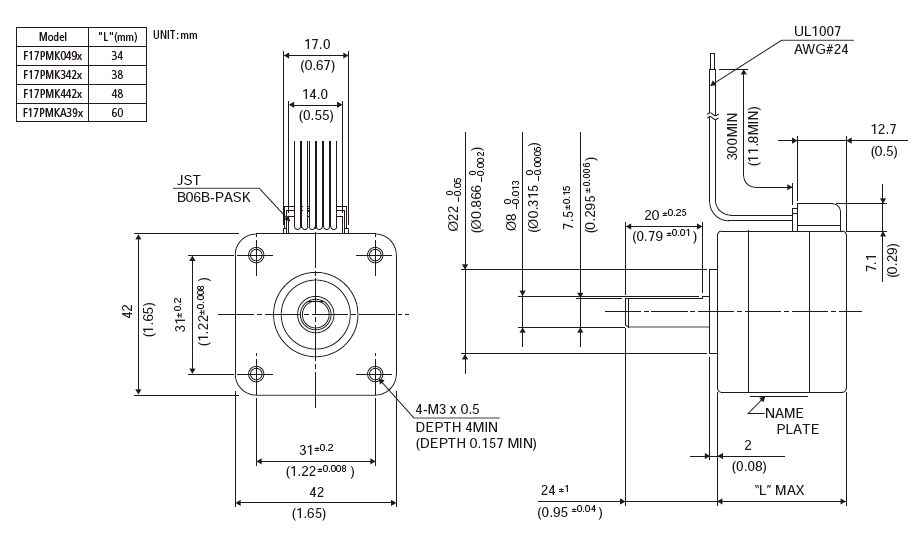

Using 8mm outside-dia. shaft and ball bearing 22mm outside-dia.&8mm inside-dia.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

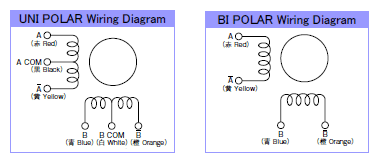

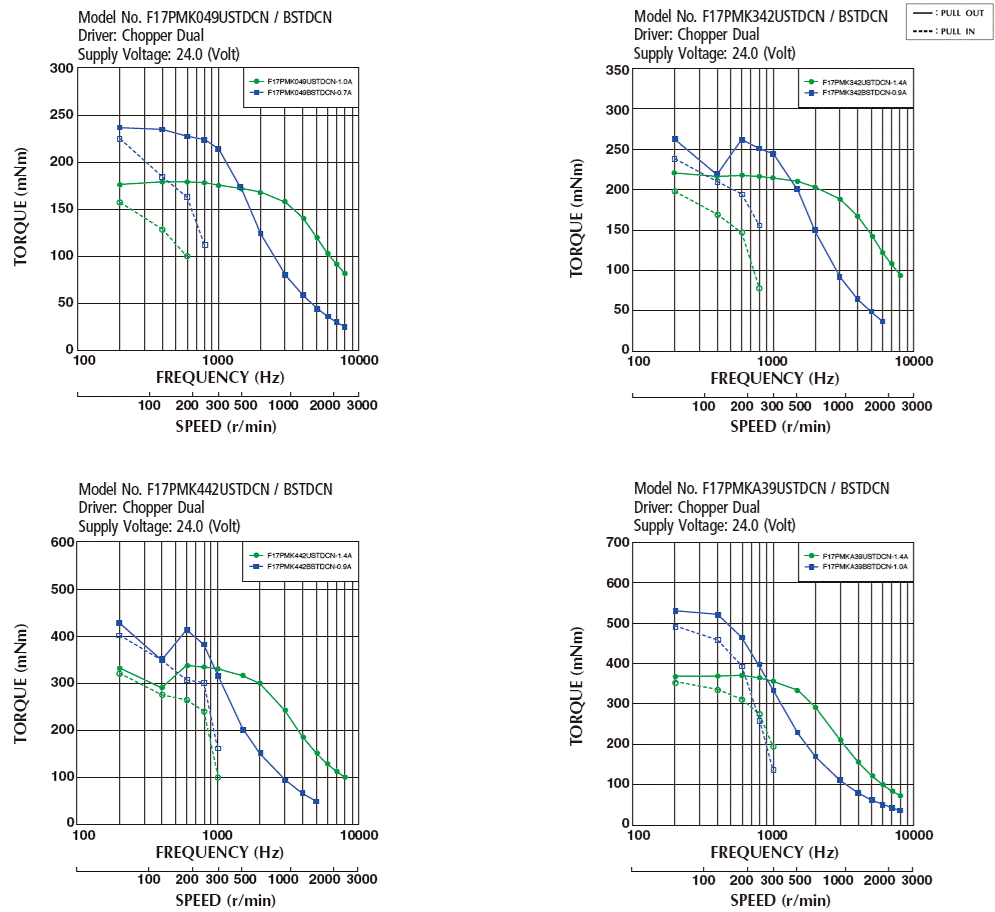

Model	Outer Diameter [mm]	Step Angle [°]	Drive Sequence	Rated Current [A]	Resistance [Ω]	Holding Torque [mN・m]	Inductance [mH]	Rotor Inertia [g・cm2]	Detent Torque [mN・m]	Mass [g]
F17PMK049USTDCN	42.0	1.800	UNI-POLAR	1.00	3.10	181	3.40	39.00	8.30	220
F17PMK342USTDCN	42.0	1.800	UNI-POLAR	1.40	2.00	225	2.60	51.00	8.50	270
F17PMK442USTDCN	42.0	1.800	UNI-POLAR	1.40	2.80	362	3.60	78.00	12.50	370
F17PMKA39USTDCN	42.0	1.800	UNI-POLAR	1.40	2.90	431	4.20	115.00	16.20	510
F17PMK049BSTDCN	42.0	1.800	BI-POLAR	0.70	6.20	246	13.60	39.00	8.30	220
F17PMK342BSTDCN	42.0	1.800	BI-POLAR	0.90	4.00	283	10.40	51.00	8.50	270
F17PMK442BSTDCN	42.0	1.800	BI-POLAR	0.90	5.60	452	14.40	78.00	12.50	370
F17PMKA39BSTDCN	42.0	1.800	BI-POLAR	1.00	5.80	597	16.80	115.00	16.20	510

Associated Data
- PDF product catalog
