Outline
| NMB Parts No. | 6803ZZ |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | 6803ZZ |
| Material of Rings | Chromium Steel |
| Ring Type | [Radial] basic type |

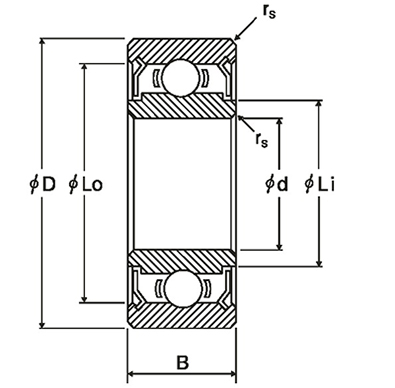

| Inner Diameter(d) [mm] |
17.000 |
| Inner Diameter(d)Tolerance [mm] |
Compliant with JIS standards |
| Outer Diameter(D) [mm] |
26.000 |
| Outer Diameter(D)Tolerance [mm] |
Compliant with JIS standards |
| Width(B) [mm] |
5.000 |
| Width(B)Tolerance [mm] |
Compliant with JIS standards |
| Chamfer(rs min) [mm] |
0.300 |
| Reference Diameter Outer(Lo) [mm] |
24.220 |
| Reference Diameter Inner(Li) [mm] |
19.700 |
| Ball Size(DW) [mm] |
2.3813 |
| Ball Complement(Z) | 15 |
| Dynamic Load Rating(Cr) [N] |
2137 |
| Static Load Rating(Cor) [N] |
1368 |
| Inner Diameter(d) [in] |
0.6693 |
| Outer Diameter(D) [in] |
1.0236 |
