Miniature & small ball bearings Thrust ball bearings with raceway grooves
DDT-1570DSG

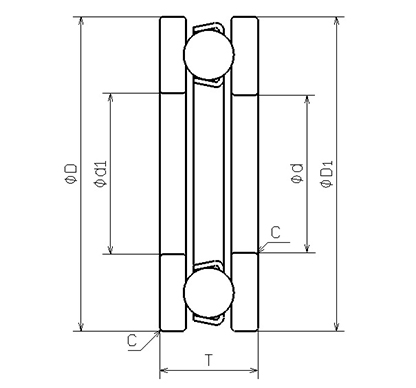

Outline
| NMB Parts No. | DDT-1570DSG |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | - |
| Material of Rings | Stainless Steel |
| Ring Type | [Thrust] with groove |
| Inner Diameter (d) +0 -0.008 [mm] |
7.000 |
| Inner Diameter (d1) ±0.050 [mm] |
7.200 |
| Outer Diameter (D) +0 -0.011 [mm] |
15.000 |
| Outer Diameter (D1) +0 -0.050 [mm] |
15.000 |
| Height (T) +0 -0.075 [mm] |
5.500 |
| Chamfer (C) [mm] |
0.3 |
| Ball Size (DW) [mm] |
2.3813 |
| Ball Complement (Z) |
9 |
| Dynamic Load Rating (Ca) [N] |
2476 |
| Static Load Rating (Coa) [N] |
3144 |
| Inner Diameter (d) [in] |
0.2756 |
| Outer Diameter (D) [in] |
0.5906 |
