Miniature & small ball bearings Thrust ball bearings without raceway grooves

DDT-1810

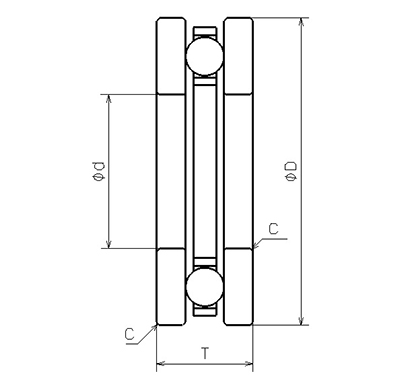

Outline

NMB Parts No. DDT-1810
Metric or Inch Metric
ISO/JIS -
Material of Rings Stainless Steel
Ring Type [Thrust] without groove
Inner Diameter
(d)
+0.040
+0.020
[mm]
10.000
Outer Diameter
(D)
+0
-0.011
[mm]
18.000
Height
(T)
+0
-0.075
[mm]
5.500
Chamfer
(C)
[mm]
0.3
Ball Size
(DW)
[mm]
2.3813
Ball Complement
(Z)
9
Inner Diameter
(d)
[in]
0.3937
Outer Diameter
(D)
[in]
0.7087

Download

CAD Data

Our CAD data is downloadable through the "PARTcommunity" service provided by CADENAS WEB2CAD Inc.. In order to use this service, registration to "PARTcommunity" is required, but is Available free of charge. Please click "CAD data [PARTcommunity]" to download 2D/ 3D CAD data for our products.
