K17PM(K Series)

This is the "M Series", which is equipped with a battery-less absolute encoder that achieves a slim design with our unique sensor mechanism on a hybrid type stepping motor.

By applying the time measurement mechanism of an analog clock, our absolute encoder can maintain the current position even when not powered, without the need for a backup power source. Furthermore, it is possible to resume operation without returning to the origin even after restart, contributing to the reduction of tact time while reducing the need for origin sensors and limit sensors required for returning to the origin.

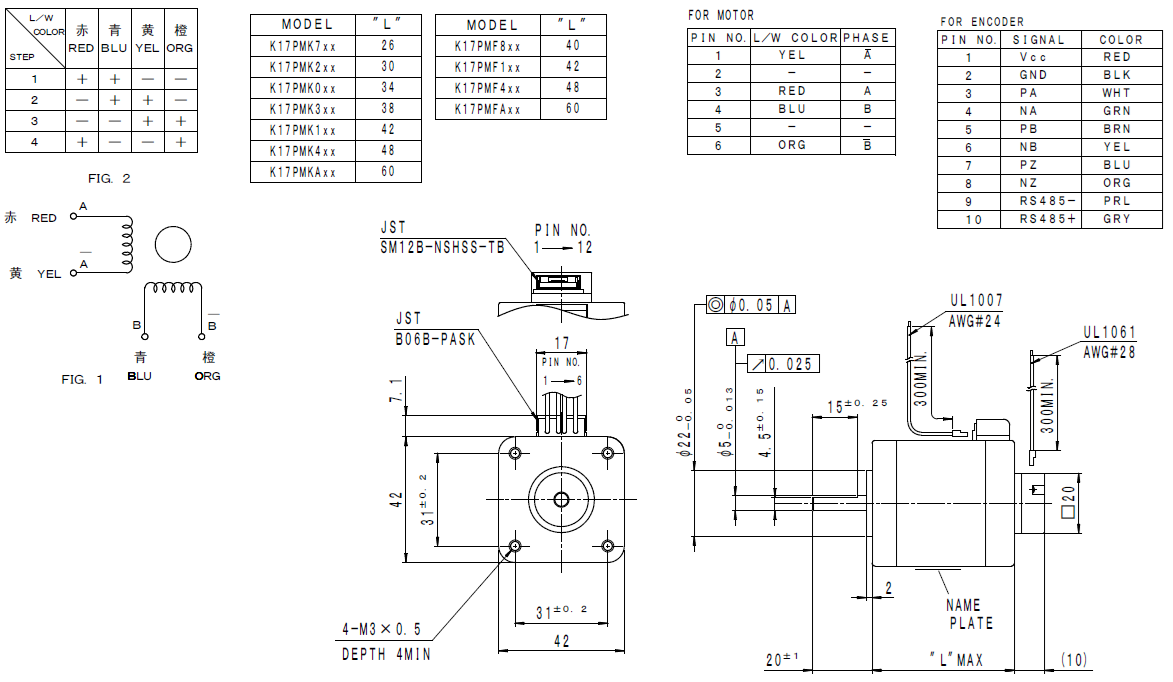

The position detection method can be chosen from absolute output and incremental output, and the size is available in 9 types with different L dimensions of □28mm / □42mm / □56.4mm.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

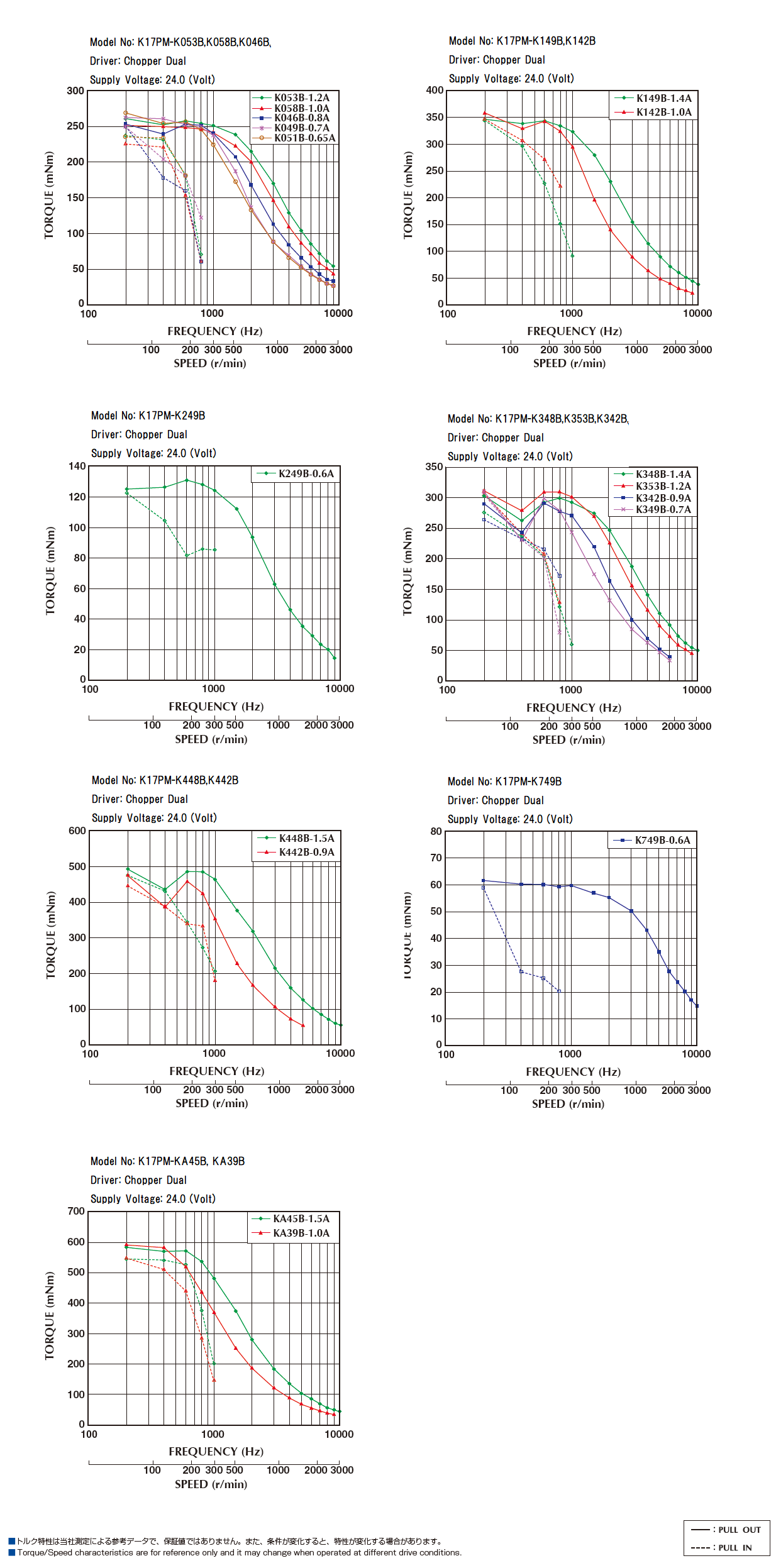

Model	Outer Diameter [mm]	Full length [mm]	Step Angle [°]	Drive Sequence	Rated Current [A]	Resistance [Ω]	Holding Torque [mN・m]	Inductance [mH]	Rotor Inertia [g・cm2]	Detent Torque [mN・m]	Encoder Resolution [CPR]	Maximum turn count	Mass [g]
K17PM-K053B	42.0	44.0	1.800	BI-POLAR	1.20	2.20	270	4.60	37.00	11.00	4000	1	210
K17PM-K058B	42.0	44.0	1.800	BI-POLAR	1.00	3.00	270	6.40	37.00	11.00	4000	1	210
K17PM-K046B	42.0	44.0	1.800	BI-POLAR	0.80	5.00	270	10.30	37.00	11.00	4000	1	210
K17PM-K049B	42.0	44.0	1.800	BI-POLAR	0.70	6.40	270	12.80	37.00	11.00	4000	1	210
K17PM-K051B	42.0	44.0	1.800	BI-POLAR	0.65	7.80	270	15.90	37.00	11.00	4000	1	210
K17PM-K149B	42.0	52.0	1.800	BI-POLAR	1.40	2.20	380	6.10	62.00	11.80	4000	1	310
K17PM-K142B	42.0	52.0	1.800	BI-POLAR	1.00	4.60	380	12.90	62.00	11.80	4000	1	310
K17PM-K249B	42.0	40.0	1.800	BI-POLAR	0.60	5.40	140	12.00	24.00	4.30	4000	1	190
K17PM-K348B	42.0	48.0	1.800	BI-POLAR	1.40	1.80	310	4.30	50.00	11.30	4000	1	260
K17PM-K353B	42.0	48.0	1.800	BI-POLAR	1.20	2.50	310	6.20	50.00	11.30	4000	1	260
K17PM-K342B	42.0	48.0	1.800	BI-POLAR	0.90	4.00	310	9.90	50.00	11.30	4000	1	260
K17PM-K349B	42.0	48.0	1.800	BI-POLAR	0.70	7.40	310	18.00	50.00	11.30	4000	1	260
K17PM-K448B	42.0	58.0	1.800	BI-POLAR	1.50	2.40	500	5.80	75.00	16.70	4000	1	360
K17PM-K442B	42.0	58.0	1.800	BI-POLAR	0.90	5.60	500	13.60	75.00	16.70	4000	1	360
K17PM-K749B	42.0	36.0	1.800	BI-POLAR	0.60	4.40	65	6.40	11.00	2.80	4000	1	160
K17PM-KA45B	42.0	70.0	1.800	BI-POLAR	1.50	2.70	610	7.50	120.00	21.60	4000	1	500
K17PM-KA39B	42.0	70.0	1.800	BI-POLAR	1.00	6.00	610	15.90	120.00	21.60	4000	1	500
