PG20□Series

Gear box type series is geared stepping motor with a combination of a 2-phase stepping motor and gearbox using a high-performance bearings MinebeaMitsumi.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

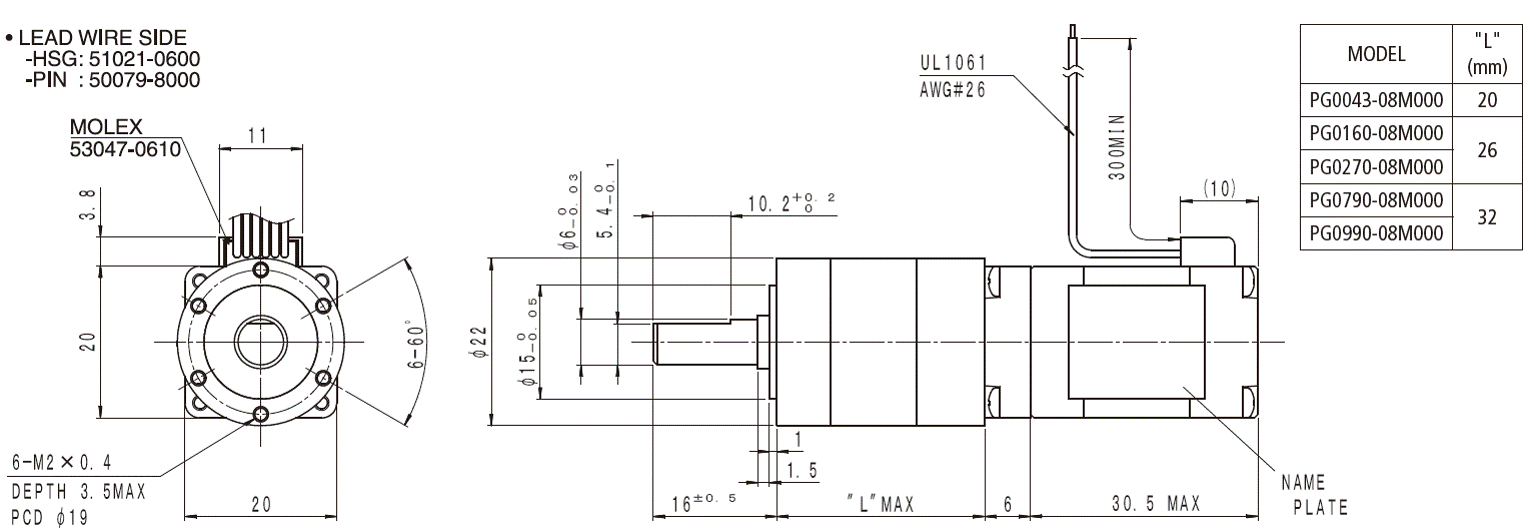

Model	Outer Diameter [mm]	Step Angle [°]	Gear Ratio [1:X]	Drive Sequence	Rated Current [A]	Resistance [Ω]	Rated Torque [mN・m]	Rated Torque [gf･cm]	Maximum Instantaneous Torque [mN・m]	Maximum Instantaneous Torque [gf･cm]	Gearhead length L1 [mm]
PG0043-08M000	20.0	0.419	1:4.3	BI-POLAR	0.50	8.50	300.00	3060.00	450.00	4590.00	20.00

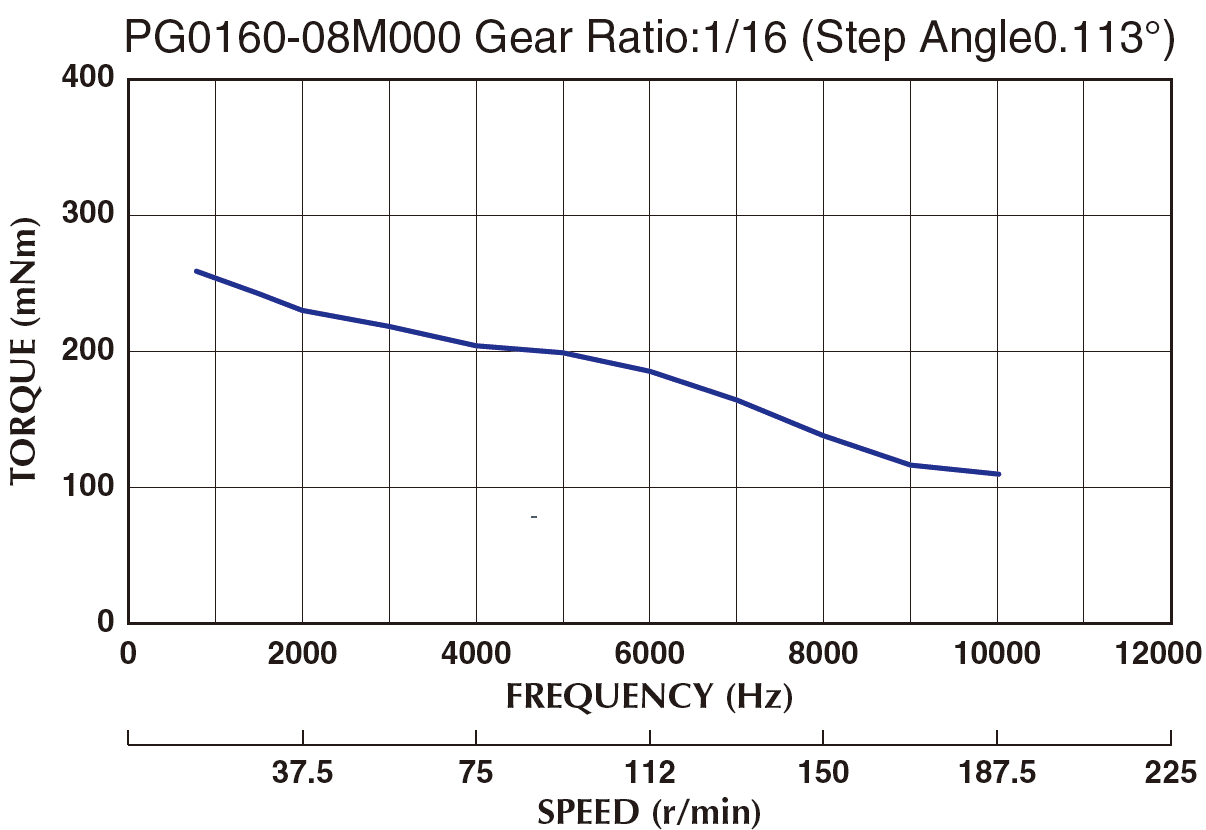

PG0160-08M000	20.0	0.113	1:16	BI-POLAR	0.50	8.50	550.00	5610.00	825.00	8410.00	26.00
PG0270-08M000	20.0	0.067	1:27	BI-POLAR	0.50	8.50	550.00	5610.00	825.00	8410.00	26.00
PG0790-08M000	20.0	0.023	1:79	BI-POLAR	0.50	8.50	1500.00	15300.00	2250.00	22940.00	32.00
PG0990-08M000	20.0	0.018	1:99	BI-POLAR	0.50	8.50	1500.00	15300.00	2250.00	22940.00	32.00

Optical Equipment：Projector ／ Security Camera
Medical Equipment：Blood Analyzer ／ Tube Pump
Industrial Equipment：Flow Control Valves
Associated Data
- PDF product catalog
CAD
- 3D/2D CAD
