Geared type

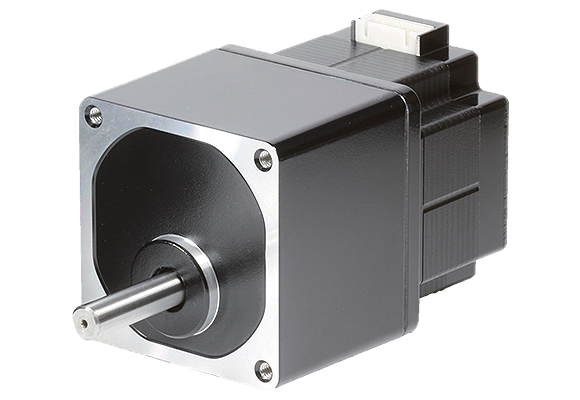

Product image of Geared type | Hybrid stepping motors

Gear box type series is geared stepping motor with a combination of a 2-phase stepping motor and gearbox using a high-performance bearings MinebeaMitsumi.

Download

Geared type Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Outer Diameter
[mm]

Step Angle
upper limit
[°]

Resistance
[Ω]

PDF

CAD Data Download
PG20□Series 20.0 0.42 8.50 PDF 3D/2D CAD
PG25□Series 25.0 0.42 3.00 PDF 3D/2D CAD
GT42□ Series 42.0 0.50 3.10 PDF 3D/2D CAD
GT56□ Series 56.4 0.50 5.80 PDF 3D/2D CAD
GS42□ Series 42.0 0.50 4.20 PDF 3D/2D CAD
