17PM-F(42□ 1.8°)

Stepping motors rotate at fixed angles with digitally controlled electronic pulses and they are able to start, stop and position with good control characteristics. Hybrid-type stepping motors consist of a rotor with permanent magnets and magnetic bodies, and by using ball bearings they can perform highly precise and reliable motions. Stepping motors can be used in wide range of applications, such as copy machines, multifunction printers, medical equipment, semiconductor manufacturing equipment, factory automation equipment, robots and other industrial equipment.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Outer Diameter [mm]	Step Angle [°]	Drive Sequence	Rated Current [A]	Resistance [Ω]	Holding Torque [mN・m]	Inductance [mH]	Rotor Inertia [g・cm2]	Detent Torque [mN・m]	Mass [g]
17PM-F848B	42.0	1.800	BI-POLAR	1.10	2.70	310	4.20	76.00	14.70	300
17PM-F856B	42.0	1.800	BI-POLAR	0.90	4.70	310	6.90	76.00	14.70	300
17PM-F140B	42.0	1.800	BI-POLAR	1.70	1.40	340	2.20	84.00	18.60	320
17PM-F144B	42.0	1.800	BI-POLAR	1.40	2.10	340	3.30	84.00	18.60	320
17PM-F148B	42.0	1.800	BI-POLAR	1.10	3.00	340	4.80	84.00	18.60	320
17PM-F156B	42.0	1.800	BI-POLAR	0.90	5.50	340	8.50	84.00	18.60	320
17PM-F438B	42.0	1.800	BI-POLAR	2.00	1.10	430	2.30	110.00	23.50	380
17PM-F442B	42.0	1.800	BI-POLAR	1.60	1.90	430	3.80	110.00	23.50	380
17PM-F452B	42.0	1.800	BI-POLAR	1.00	5.00	430	9.00	110.00	23.50	380
17PM-F449B	42.0	1.800	BI-POLAR	1.20	3.60	430	6.90	110.00	23.50	380
17PM-FA38B	42.0	1.800	BI-POLAR	2.00	1.80	690	2.80	162.00	29.40	510
17PM-FA49B	42.0	1.800	BI-POLAR	1.30	4.50	690	9.20	162.00	29.40	510

scroll

Model

size "L"
[mm]

size "L"
[Inch]

17PM-F8** 40.0 1.57

17PM-F1** 42.0 1.65

17PM-F4** 48.0 1.89

17PM-FA** 60.0 2.36
scroll

PHASE

A

A/

B

B/

PIN NO. 4 6 3 1
Associated Data
- PDF product catalog
CAD
- 3D/2D CAD

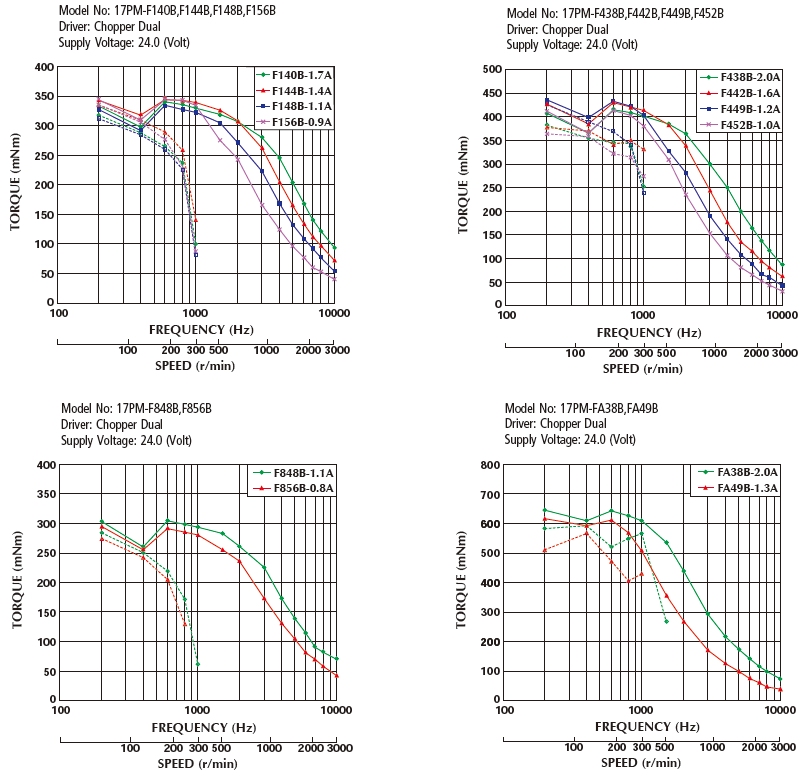

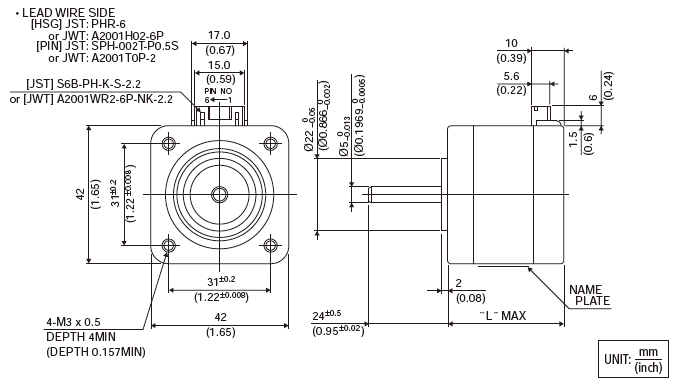

Model	size "L" [mm]	size "L" [Inch]
17PM-F8**	40.0	1.57
17PM-F1**	42.0	1.65
17PM-F4**	48.0	1.89
17PM-FA**	60.0	2.36

PHASE	A	A/	B	B/
PIN NO.	4	6	3	1
