Standard type

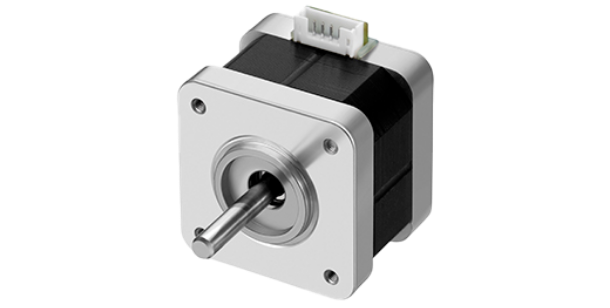

Stepping motors rotate at fixed angles with digitally controlled electronic pulses and they are able to start, stop and position with good control characteristics. Hybrid-type stepping motors consist of a rotor with permanent magnets and magnetic bodies, and by using ball bearings they can perform highly precise and reliable motions. Stepping motors can be used in wide range of applications, such as copy machines, multifunction printers, medical equipment, semiconductor manufacturing equipment, factory automation equipment, robots and other industrial equipment.
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Outer Diameter |
Step Angle |
|
CAD Data Download |
|---|---|---|---|---|
| 08PM-K(20□ 1.8°) | 20.0 | 1.80 | 3D/2D CAD | |
| 10PM-K(25□ 1.8°) | 25.0 | 1.80 | 3D/2D CAD | |
| 11PM-K(28□1.8°) | 28.0 | 1.80 | 3D/2D CAD | |
| 14PY-Z(35□ 0.9°) | 35.0 | 0.90 | 3D/2D CAD | |
| 14PM-F(35□ 1.8°) | 35.0 | 1.80 | 3D/2D CAD | |
| 17PY-Z(42□ 0.9°) | 42.0 | 0.90 | 3D/2D CAD | |
| 17PM-K(42□ 1.8°) | 42.0 | 1.80 | 3D/2D CAD | |
| 17PM-F(42□ 1.8°) | 42.0 | 1.80 | 3D/2D CAD | |
| 23KY-K(56□ 0.9°) | 56.4 | 0.90 | 3D/2D CAD | |
| 23KM-K(56□ 1.8°) | 56.4 | 1.80 | 3D/2D CAD | |
| 23KM-H(56□ 1.8°) | 56.4 | 1.80 | 3D/2D CAD | |
| 29SM-K(71○ 1.8°) | 71.0 | 1.80 | 3D/2D CAD | |
| 34KM-K(85□ 1.8°) | 85.0 | 1.80 | 3D/2D CAD |
