Appearance
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_04_30.jpg)

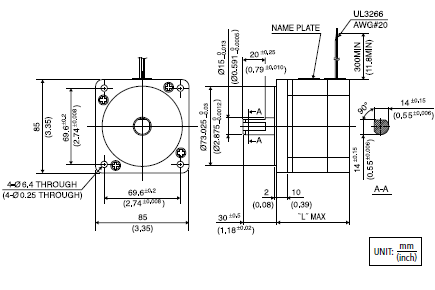

Overall View
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_07_8.gif)
Size
Model | size "L" [mm] |
size "L" [Inch] |
---|---|---|
34KM-K0** | 68.0 | 2.68 |
34KM-K1** | 96.0 | 3.78 |
34KM-K2** | 124.0 | 4.88 |
Wiring Diagram
PHASE | A | A COM | A/ | B | B COM | B/ |
---|---|---|---|---|---|---|
Leadwire color | RED | BLACK | YELLOW | BLUE | WHITE | ORANGE |
Specifications
Model | Outer Diameter [mm] |
Step Angle [°] |
Drive Sequence | Rated Current [A] |
Resistance [Ω] |
Holding Torque [mN・m] |
Inductance [mH] |
Rotor Inertia [g・cm2] |
Detent Torque [mN・m] |
Mass [g] |
---|

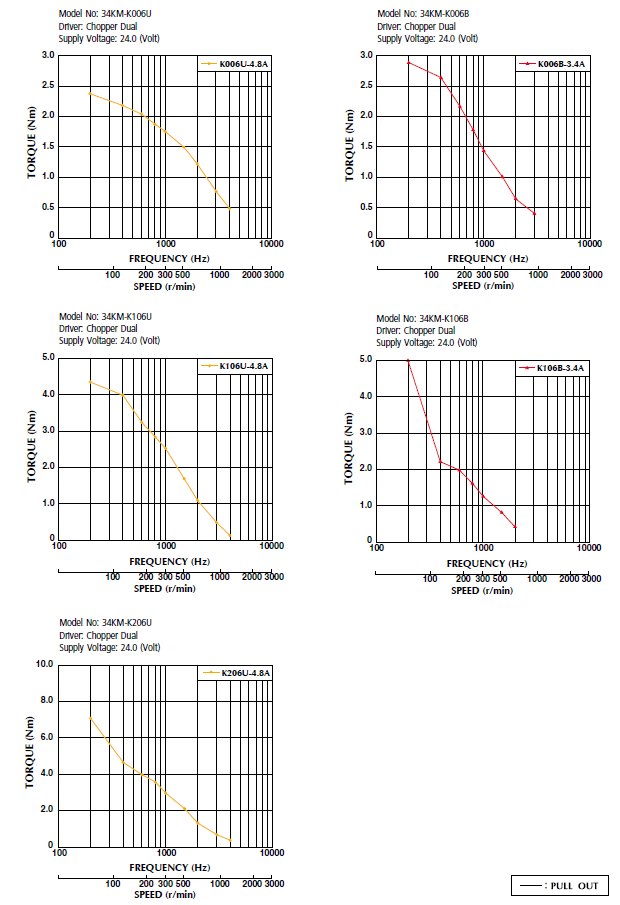

Torque/Speed Characteristics
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_01_28.gif)
Download
Associated Data
CAD
Product customizations by MinebeaMitsumi
We customize products through technological consultations, sample productions, optional functionalities, and other forms of support we offer to meet your demands.
