GS42□ Series

Gear box type series is geared stepping motor with a combination of a 2-phase stepping motor and gearbox using a high-performance bearings MinebeaMitsumi.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Outer Diameter [mm]	Step Angle [°]	Gear Ratio [1:X]	Permissible Torque [N･m]	Permissible Torque [kgf・cm]	Drive Sequence	Rated Current [A]	Resistance [Ω]	Permissible Speed Range upper limit [r/min]	Backlash [min(deg)]	Mass [g]

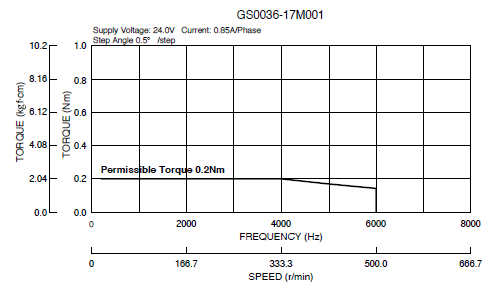

GS0036-17M001	42.0	0.500	1:3.6	0.20	2.04	UNI-POLAR	0.85	4.20	500	2degree and under	310

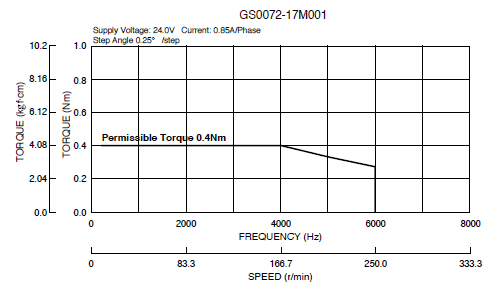

GS0072-17M001	42.0	0.250	1:7.2	0.40	4.08	UNI-POLAR	0.85	4.20	250	2degree and under	310

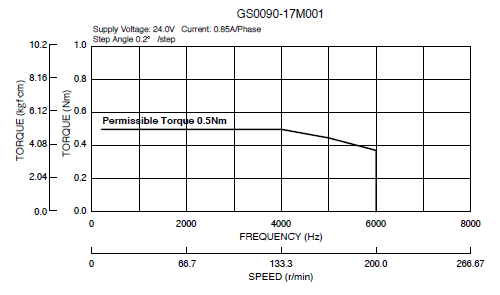

GS0090-17M001	42.0	0.200	1:9	0.50	5.10	UNI-POLAR	0.85	4.20	200	2degree and under	310

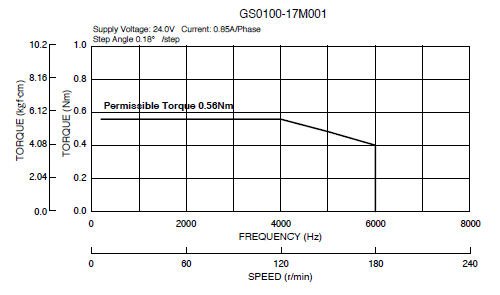

GS0100-17M001	42.0	0.180	1:10	0.56	5.71	UNI-POLAR	0.85	4.20	180	2degree and under	310

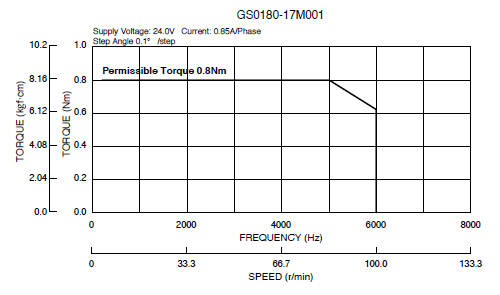

GS0180-17M001	42.0	0.100	1:18	0.80	8.16	UNI-POLAR	0.85	4.20	100	2degree and under	320

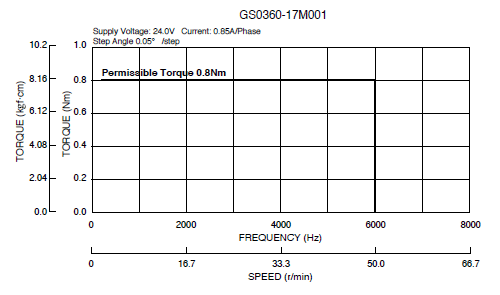

GS0360-17M001	42.0	0.050	1:36	0.80	8.16	UNI-POLAR	0.85	4.20	50	2degree and under	320

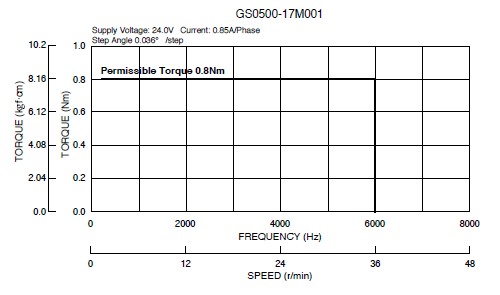

GS0500-17M001	42.0	0.036	1:50	0.80	8.16	UNI-POLAR	0.85	4.20	36	2degree and under	330

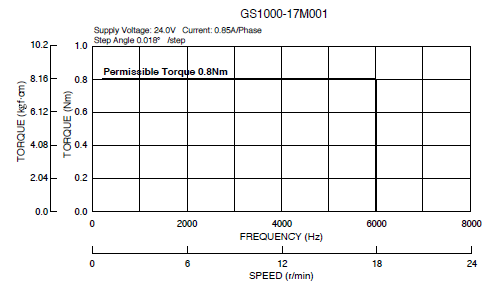

GS1000-17M001	42.0	0.018	1:100	0.80	8.16	UNI-POLAR	0.85	4.20	18	2degree and under	330

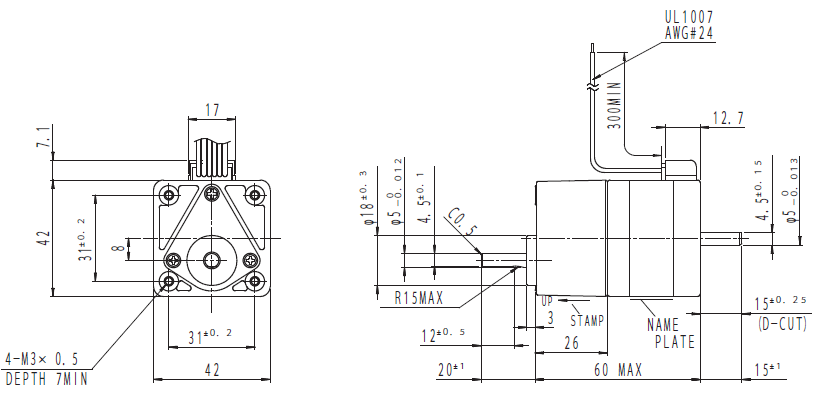

*Leadwires will be supplied with the motor.
*Drive sequence:Unipolar.
*Direction of rotation of the motor and that of the gear output shaft
are the same for the gear ratios 1:3.6,1:7.2,1:9,1:10,1:50 and 1:100.
It is the opposite for 1:18 and 1:36 rear ratio.

scroll

PHASE

A

A COM

A/

B

B COM

B/

PIN NO. 3 2 1 4 5 6
Associated Data
- PDF product catalog
CAD
- 3D/2D CAD

PHASE	A	A COM	A/	B	B COM	B/
PIN NO.	3	2	1	4	5	6
