Hybrid stepping motors Battery-less Absolute Encoder type
M23KM(□56)
Appearance
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_04_4.png)

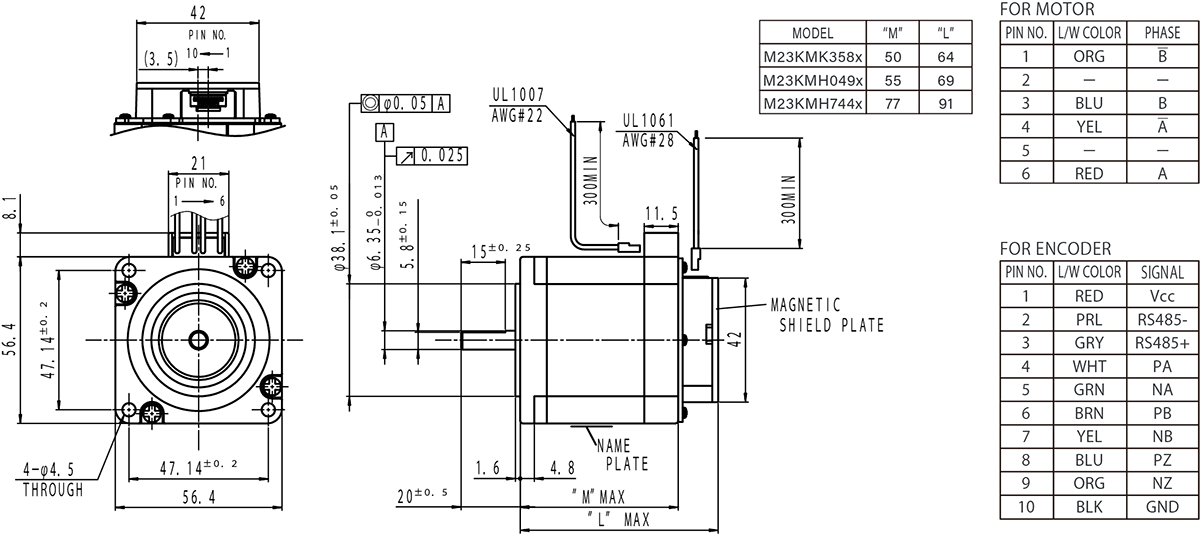

Overall View
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_07_48.png)

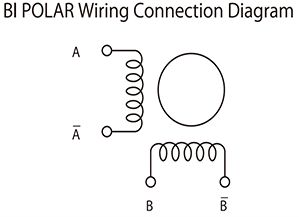

Wiring Diagram
PHASE | A | A COM | A/ | B | B COM | B/ |
---|---|---|---|---|---|---|
PIN NO. | 3 | - | 1 | 4 | - | 6 |
Wiring Diagram Image
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_01_60.png)
Specifications
Model | Outer Diameter [mm] |
Length [mm] |
Step Angle [°] |
Drive Sequence | Rated Current [A] |
Resistance [Ω] |
Holding Torque [mN・m] |
Inductance [mH] |
Rotor Inertia [g・cm2] |
Detent Torque [mN・m] |
Encoder Resolution [CPR] |
Mass [g] |
Maximum turn count |
---|
Encoder Specifications
Item | specifications |
---|---|
ENCODER TYPE | INCREMENTAL |

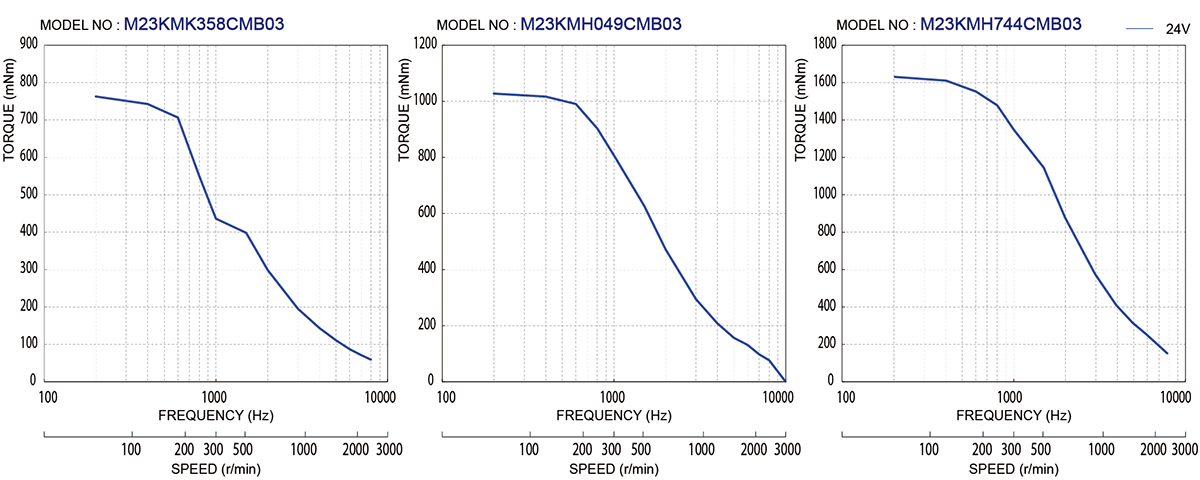

Torque/Speed Characteristics
![](/en/product/category/rotary/steppingmotor/hybrid/parts/data/__icsFiles/afieldfile/2024/05/30/file_01_58.png)
