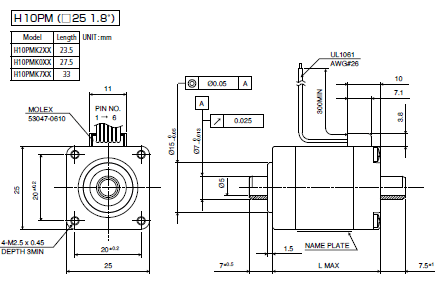

H10PM-K(25□ 1.8°)

Stepping Motor with Hollow shaft type lineup is 3 Items.
* 25mm Frame size shaft : outside-dia. 7mm ,inside-dia. 5mm
* 42mm Frame size shaft : outside-dia. 12mm ,inside-dia. 10mm
* 56mm Frame size shaft : outside-dia. 20mm ,inside-dia. 16mm
Suitable for small space.
Often used for Pump compornent.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

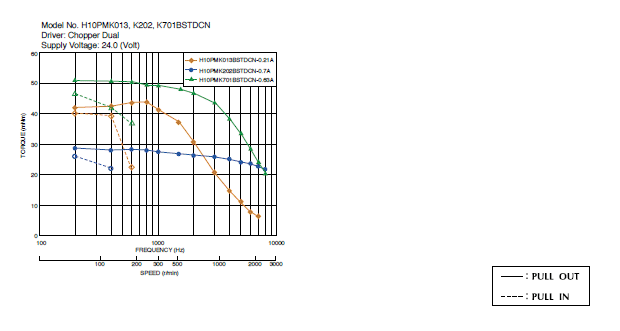

Model	Outer Diameter [mm]	Step Angle [°]	Drive Sequence	Rated Current [A]	Resistance [Ω]	Holding Torque [mN・m]	Inductance [mH]	Rotor Inertia [g・cm2]	Mass [g]

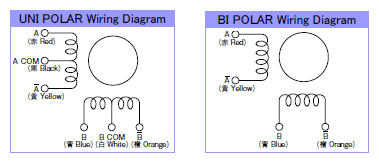

H10PMK202BSTDCN	25.0	1.800	BI-POLAR	0.70	3.80	33	2.00	2.00	55
H10PMK013BSTDCN	25.0	1.800	BI-POLAR	0.21	47.00	49	32.00	3.00	70
H10PMK701BSTDCN	25.0	1.800	BI-POLAR	0.63	5.80	56	5.40	5.00	90
