Hollow Shaft type

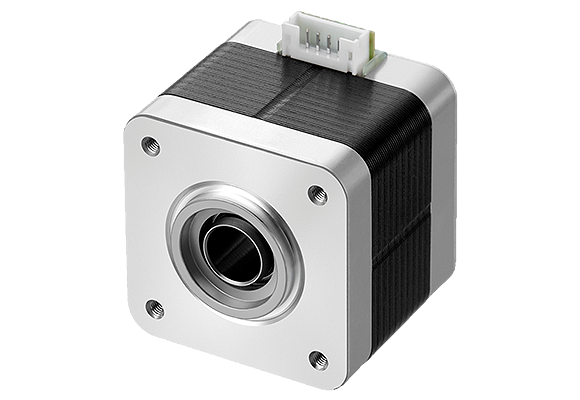

Product image of Hollow Shaft type | Hybrid stepping motors

Stepping Motor with Hollow shaft type lineup is 3 Items.
* 25mm Frame size shaft : outside-dia. 7mm ,inside-dia. 5mm
* 42mm Frame size shaft : outside-dia. 12mm ,inside-dia. 10mm
* 56mm Frame size shaft : outside-dia. 20mm ,inside-dia. 16mm
Suitable for small space.
Often used for Pump compornent.

Download

Hollow Shaft type Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Outer Diameter
[mm]

Step Angle
upper limit
[°]

PDF
H10PM-K(25□ 1.8°) 25.0 1.80 PDF
H17PM-K(42□ 1.8°) 42.0 1.80 PDF
H23KM-H(56□ 1.8°) 56.4 1.80 PDF
