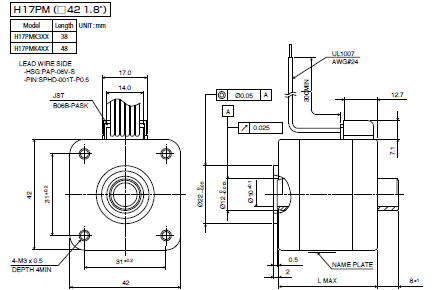

H17PM-K(42□ 1.8°)

Stepping Motor with Hollow shaft type lineup is 3 Items.
* 25mm Frame size shaft : outside-dia. 7mm ,inside-dia. 5mm
* 42mm Frame size shaft : outside-dia. 12mm ,inside-dia. 10mm
* 56mm Frame size shaft : outside-dia. 20mm ,inside-dia. 16mm
Suitable for small space.
Often used for Pump compornent.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Outer Diameter [mm]	Step Angle [°]	Drive Sequence	Rated Current [A]	Resistance [Ω]	Holding Torque [mN・m]	Inductance [mH]	Rotor Inertia [g・cm2]	Mass [g]
H17PMK342USTDCN	42.0	1.800	UNI-POLAR	1.40	2.00	220	2.90	63.00	250
H17PMK442USTDCN	42.0	1.800	UNI-POLAR	1.40	2.80	370	4.30	90.00	350
H17PMK342BSTDCN	42.0	1.800	BI-POLAR	0.90	4.00	270	11.20	63.00	250
H17PMK442BSTDCN	42.0	1.800	BI-POLAR	0.90	5.60	450	17.20	90.00	350
