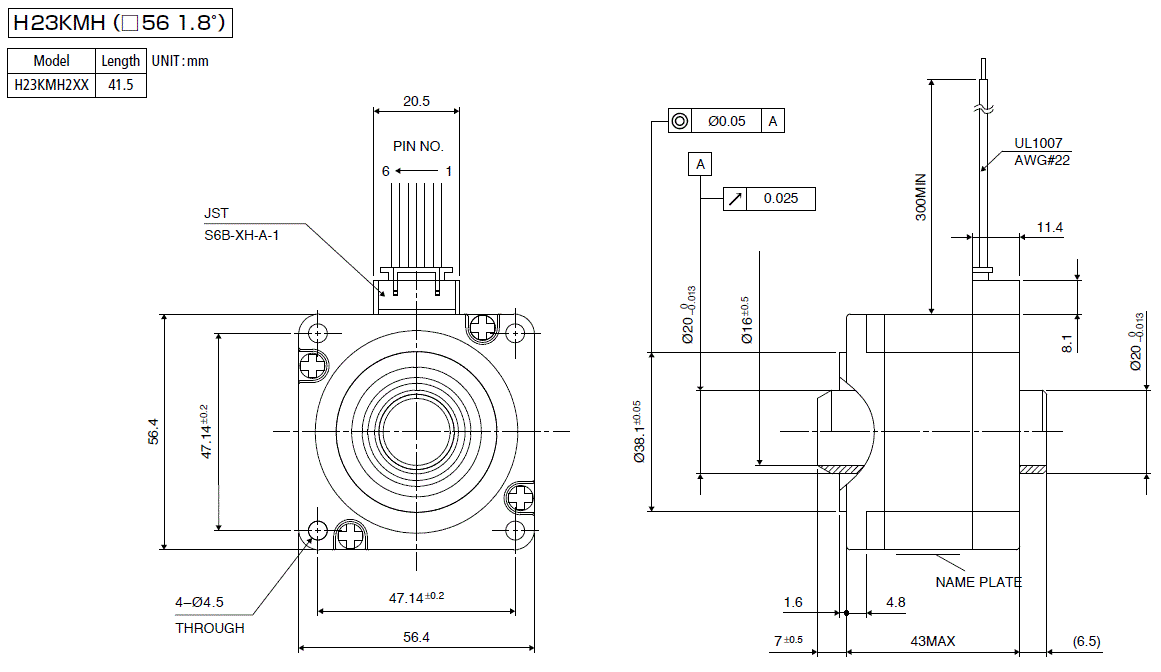

H23KM-H(56□ 1.8°)

Stepping Motor with Hollow shaft type lineup is 3 Items.
* 25mm Frame size shaft : outside-dia. 7mm ,inside-dia. 5mm
* 42mm Frame size shaft : outside-dia. 12mm ,inside-dia. 10mm
* 56mm Frame size shaft : outside-dia. 20mm ,inside-dia. 16mm
Suitable for small space.
Often used for Pump compornent.

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Outer Diameter
    [mm]

    Step Angle
    [°]

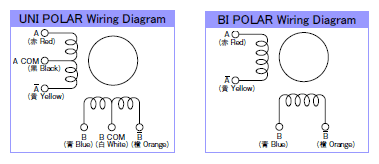

    Drive Sequence

    Rated Current
    [A]

    Resistance
    [Ω]

    Holding Torque
    [mN・m]

    Inductance
    [mH]

    Rotor Inertia
    [g・cm2]

    Mass
    [g]
    H23KMH248USTDCN 56.4 1.800 UNI-POLAR 2.00 1.30 833 2.10 120.00 460
    H23KMH248BSTDCN 56.4 1.800 BI-POLAR 2.00 1.00 608 4.70 120.00 460
