PM stepping motors Standard type
M25SP-3N
Appearance
Reference Characteristics
| Outer Diameter [mm] |
25.0 |
|---|---|
| Length [mm] |
15.00 |
| Step No. | 48 |
| Magnet Material | Neodymium bonded magnet |
| Insulation Resistance (M) [Ω/min] |
100 |
| Dielectric Strength (AC) [V/min] |
500 |
| Step Angle [deg] |
7.50 |
| Drive Method | 2-2 phase |
| Class of Insulation | CLASS E |
| Operating Temp. lower limit [deg.C] |
0 |
| Operating Temp. upper limit [deg.C] |
50 |
| Storage Temp. lower limit [deg.C] |
-20 |
| Storage Temp. upper limit [deg.C] |
70 |
| Operating Hum. RH lower limit [%] |
5 |
| Operating Hum. RH upper limit [%] |
90 |

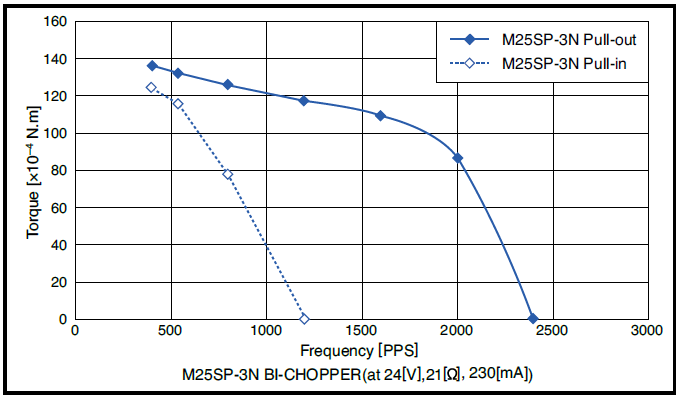

Torque Characteristic

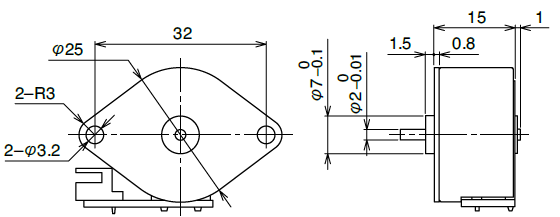

Overall View
