Standard type

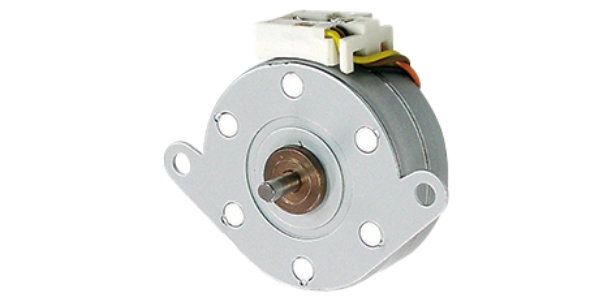

These motors rotate at fixed angles by digitally controlled electronic pulses and are used in the paper-feeding devices of printers, copy machines, facsimiles and similar equipment. PM stepping motor uses a permanent magnet (PM) as a rotor.
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Outer Diameter |
Length |
Step No. |
Step Angle |
|
CAD Data Download |
|---|---|---|---|---|---|---|
| PM15S-020 | 15.0 | 12.00 | 20 | 18.00 | 3D/2D CAD | |
| PM20S-020 | 20.0 | 15.50 | 20 | 18.00 | 3D/2D CAD | |
| PM20L-020 | 20.0 | 19.60 | 20 | 18.00 | 3D/2D CAD | |
| PM25L-024 | 25.0 | 17.00 | 24 | 15.00 | 3D/2D CAD | |
| PM25S-024 | 25.0 | 12.50 | 24 | 15.00 | 3D/2D CAD | |
| PM25S-048 | 25.0 | 12.50 | 48 | 7.50 | 3D/2D CAD | |
| PM30S-F48 | 30.0 | 15.50 | 48 | 7.50 | 3D/2D CAD | |
| PM35S-024 | 35.0 | 15.50 | 24 | 15.00 | 3D/2D CAD | |
| PM35S-N48 | 35.0 | 15.50 | 48 | 7.50 | 3D/2D CAD | |
| PM35S-F48 | 35.0 | 15.50 | 48 | 7.50 | 3D/2D CAD | |
| PM35L-024 | 35.0 | 22.20 | 24 | 15.00 | 3D/2D CAD | |
| PM35L-N48 | 35.0 | 22.20 | 48 | 7.50 | 3D/2D CAD | |
| PM42S-N48 | 42.0 | 15.50 | 48 | 7.50 | 3D/2D CAD | |
| PM42S-F48 | 42.0 | 17.90 | 48 | 7.50 | 3D/2D CAD | |
| PM42S-N96 | 42.0 | 15.50 | 96 | 3.75 | 3D/2D CAD | |
| PM42S-0X1 | 42.0 | 15.50 | 100 | 3.60 | 3D/2D CAD | |
| PM42L-N48 | 42.0 | 22.20 | 48 | 7.50 | 3D/2D CAD | |
| PM42L-F48 | 42.0 | 23.10 | 48 | 7.50 | 3D/2D CAD | |
| PM51L-F48 | 51.0 | 23.10 | 48 | 7.50 | 3D/2D CAD | |
| PM55L-048 | 55.0 | 25.70 | 48 | 7.50 | 3D/2D CAD | |
| M15SP-2N | 15.0 | 19.70 | 20 | 18.00 | 3D/2D CAD | |
| M25SP-3N | 25.0 | 15.00 | 48 | 7.50 | 3D/2D CAD | |
| M25SP-4N | 25.0 | 15.00 | 24 | 15.00 | 3D/2D CAD | |
| M25SP-5N | 25.0 | 12.00 | 48 | 7.50 | 3D/2D CAD | |
| M35SP-9 | 35.0 | 15.80 | 48 | 7.50 | 3D/2D CAD | |
| M35SP-15 | 35.0 | 15.90 | 48 | 7.50 | 3D/2D CAD | |
| M42SP-5 | 42.0 | 23.80 | 48 | 7.50 | 3D/2D CAD | |
| M42SP-5K | 42.0 | 23.80 | 48 | 7.50 | 3D/2D CAD | |
| M42SP-12K | 42.0 | 17.70 | 48 | 7.50 | 3D/2D CAD | |
| M49SP-2K | 49.0 | 29.50 | 48 | 7.50 | 3D/2D CAD | |
| M49SP-3KA | 49.0 | 29.50 | 48 | 7.50 | 3D/2D CAD |
