PM stepping motors Standard type

M25SP-4N

Appearance

Reference Characteristics

Outer Diameter
[mm]
25.0
Length
[mm]
15.00
Step No. 24
Magnet Material Neodymium bonded magnet
Insulation Resistance (M)
[Ω/min]
100
Dielectric Strength (AC)
[V/min]
500
Step Angle
[deg]
15.00
Drive Method 2-2 phase
Class of Insulation CLASS E
Operating Temp.
lower limit
[deg.C]
0
Operating Temp.
upper limit
[deg.C]
50
Storage Temp.
lower limit
[deg.C]
-20
Storage Temp.
upper limit
[deg.C]
70
Operating Hum. RH
lower limit
[%]
5
Operating Hum. RH
upper limit
[%]
90

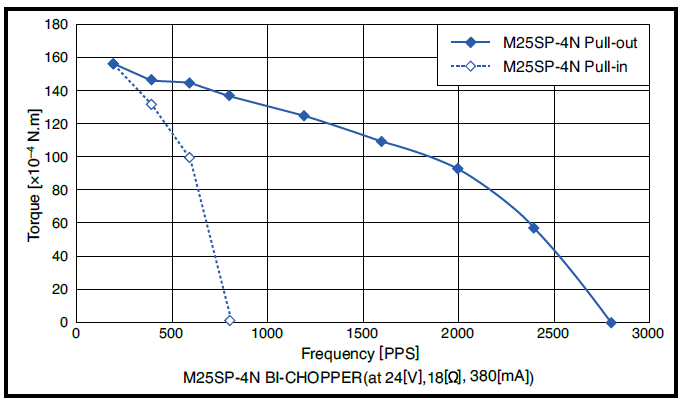

Torque Characteristic

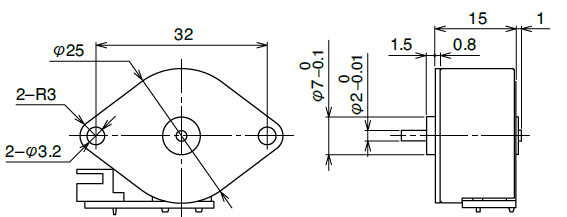

Overall View

Download
