M35SP-14NK

We also line up high speed motors which use silicon steel metal. These are used in paper-feeding devices of printers, copy machines and other office automation equipments.These series of high speed, high torque, high performance stepping motors use silico.

1. Low-profile, high resolution, and high output torque.
2. Achieves superior operational quietness and stability.

scroll

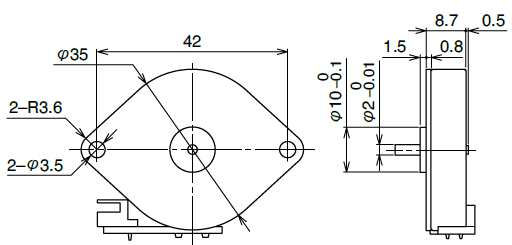

Outer Diameter [mm]	Length [mm]	Step No.	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Step Angle [deg]	Drive Method	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
35.0	8.70	48	Neodymium bonded magnet	100	500	7.50	2-2 phase	CLASS E	0	50	-20	70	5	90

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

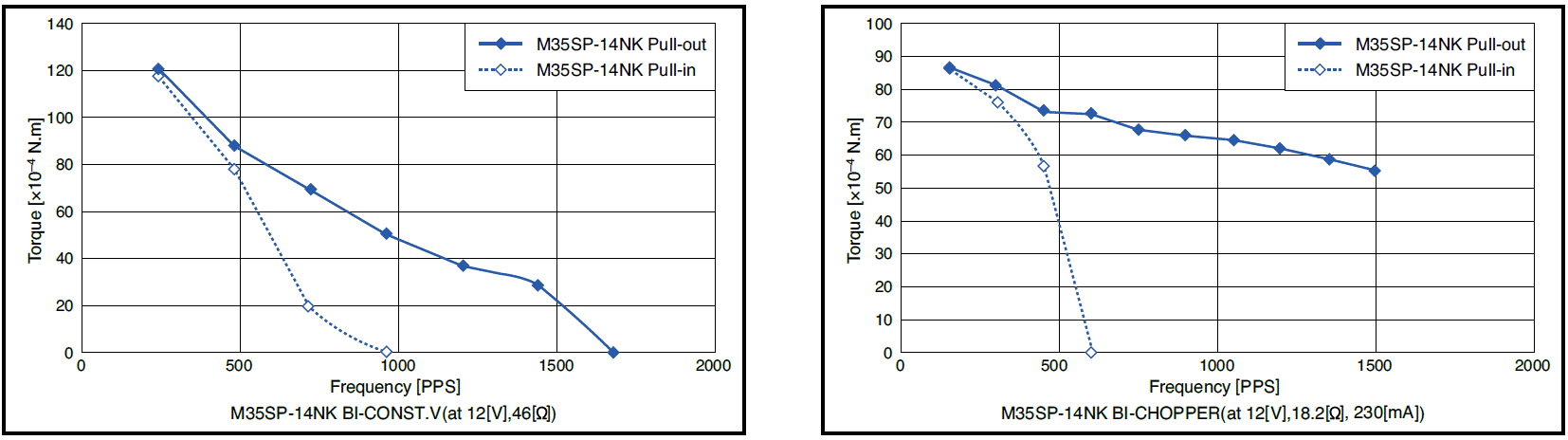

Drive Circuit	Drive Voltage [V]	Current/Phase [mA]	Coil Resistance/Phase [Ω]	Drive IC
UNIPOLAR CONST. VOLT.	12		46.0	MTD2003
BIPOLAR CHOPPER	12	230.0	18.2	MTD2003

Automotive actuators, Pachinko machines, etc.
