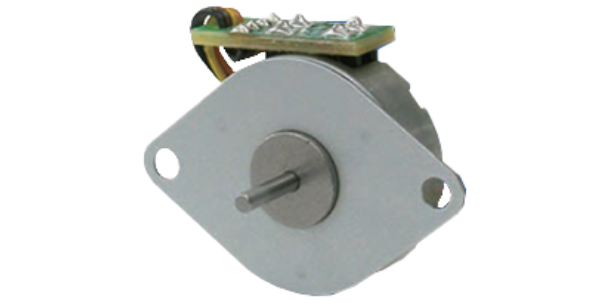

High speed type

We also line up high speed motors which use silicon steel metal. These are used in paper-feeding devices of printers, copy machines and other office automation equipments.These series of high speed, high torque, high performance stepping motors use silico.

Download

Parts List
Engineering Information
Case Studies
Industry

High speed type Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Outer Diameter [mm]	Length [mm]	Step No.	Step Angle [deg]	PDF	CAD Data Download
SMF25-G48	25.0	8.50	48	7.50	PDF	3D/2D CAD
SMF25-G96	25.0	8.50	96	3.75	PDF	3D/2D CAD
SMW35-G48	35.0	13.00	48	7.50	PDF	3D/2D CAD
SMW35-G96	35.0	13.00	96	3.75	PDF	3D/2D CAD
ST35A/B-G96	35.0	8.70	96	3.75	PDF	3D/2D CAD
SMW42-G48	42.0	16.50	48	7.50	PDF	3D/2D CAD
SMW42-G96	42.0	16.50	96	3.75	PDF	3D/2D CAD
M35SP-9NK	35.0	14.50	48	7.50	PDF	3D/2D CAD
M35SP-11NK	35.0	8.70	96	3.75	PDF	3D/2D CAD
M35SP-14NK	35.0	8.70	48	7.50	PDF	3D/2D CAD
M42SP-13NK	42.0	17.70	96	3.75	PDF	3D/2D CAD
