M42SP-12K

These motors rotate at fixed angles by digitally controlled electronic pulses and are used in the paper-feeding devices of printers, copy machines, facsimiles and similar equipment. PM stepping motor uses a permanent magnet (PM) as a rotor.

1. Achieves high responsiveness.

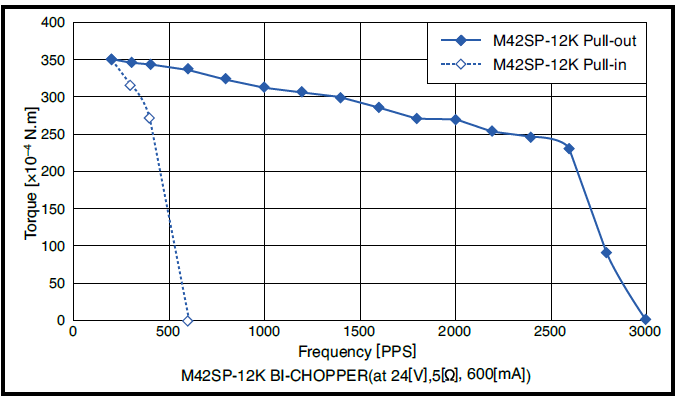

2. High output torque.
3. Delivers superior operational quietness and stability.

scroll

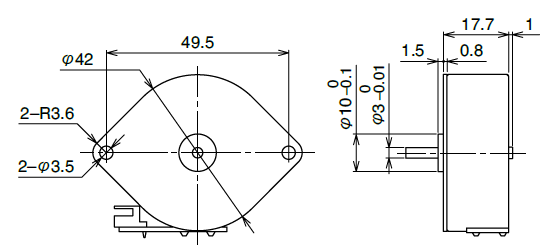

Outer Diameter [mm]	Length [mm]	Step No.	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Step Angle [deg]	Drive Method	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
42.0	17.70	48	Polar anisotropic ferrite sintered magnet	100	500	7.50	2-2 phase	CLASS E	0	50	-20	70	5	90

Printers, Multi-function Printers (MFPs), Copiers, Fax Machines, etc.
