PL25L-A48

The PM-type stepping motor is a linear type that can convert rotational motion into linear motion through the screw mechanism of the shaft and rotor.

It retains the ease of control and high-precision positioning unique to stepping motors, while achieving high thrust and high responsiveness in a compact design through our proprietary engineering. By using two high-precision NMB brand ball bearings at the front and end, shaft play is minimized, enabling even more precise control.

We offer a range of shaft feed amounts from 0.025mm/step to 0.05mm/step. Customizations to meet your specific requirements, such as winding specifications, shaft length, and the choice between captive and non-captive types, are also available.

scroll

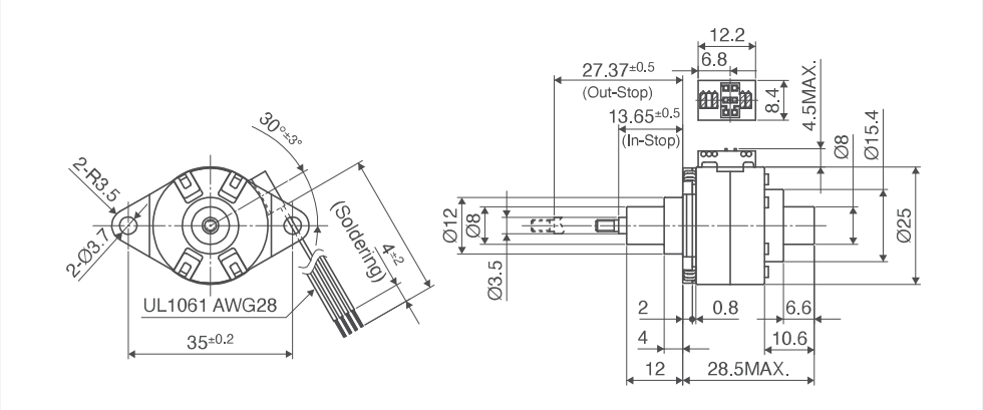

Linear Force range lower limit [N]	Linear Force range upper limit [N]	Outer Diameter [mm]	Length [mm]	Step No.	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Drive Method	Resistance [Ω]	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
10	100	25.0	28.50	48	Nd-Fe-B bonded magnet(MS70)	100	500	2-2 phase	14.7	CLASS B	0	65	-30	80	20	90

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

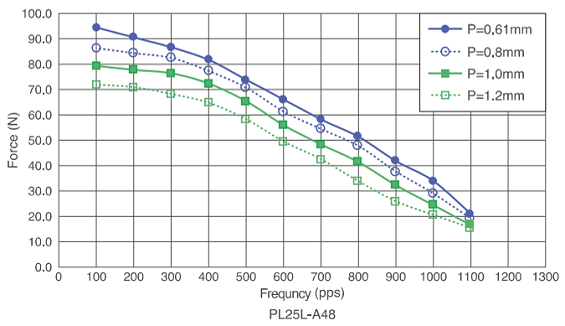

Screw Pitch [mm]	Pitch/Step (at 2phase on) [mm/Step]	Drive Circuit	Drive Voltage [V]	Current/Phase [mA]	Drive IC
0.610	0.013	BIPOLAR CHOPPER	12	300.0	BD63920MUV

Industrial equipment:Flow control valves
Communication equipment:Antenna adjustment device
Automotive:Optic axis control device
