PM stepping motors Linear type

PL35L-A24

Appearance

Reference Characteristics

Linear Force range
lower limit
[N]
5
Linear Force range
upper limit
[N]
80
Outer Diameter
[mm]
25.0
Length
[mm]
39.50
Step No. 24
Magnet Material Polar anisotropy ferrite sintered magnet(MS50)
Insulation Resistance (M)
[Ω/min]
100
Dielectric Strength (AC)
[V/min]
500
Drive Method 1-2 phase
Resistance
[Ω]
7.7
Class of Insulation CLASS B
Operating Temp.
lower limit
[deg.C]
-10
Operating Temp.
upper limit
[deg.C]
65
Storage Temp.
lower limit
[deg.C]
-30
Storage Temp.
upper limit
[deg.C]
80
Operating Hum. RH
lower limit
[%]
20
Operating Hum. RH
upper limit
[%]
90

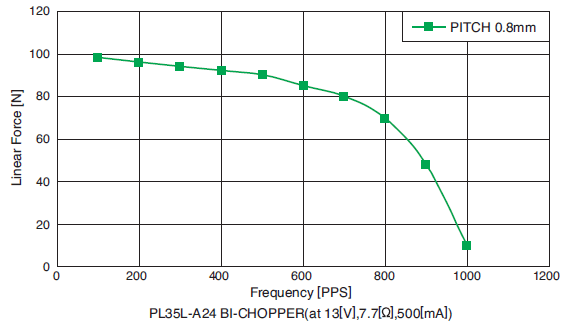

Torque Characteristic

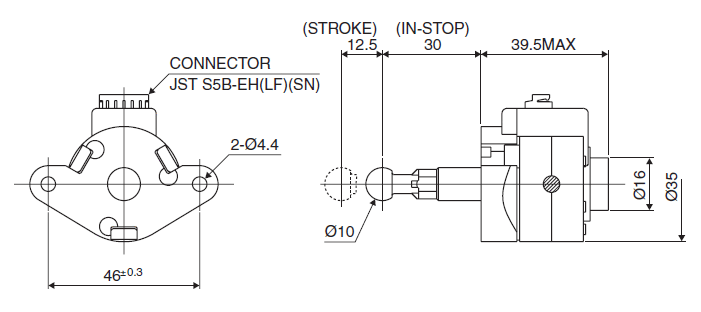

Overall View

Specifications

Screw Pitch
[mm]
Pitch/Step (at 2phase on)
[mm/Step]
Drive Circuit Drive Voltage
[V]
Current/Phase
[mA]
Drive IC

Applications

Industrial equipment:Flow control valves
Communication equipment:Antenna adjustment device
Automotive:Optic axis control device
