PM30S-F48

These motors rotate at fixed angles by digitally controlled electronic pulses and are used in the paper-feeding devices of printers, copy machines, facsimiles and similar equipment. PM stepping motor uses a permanent magnet (PM) as a rotor.

scroll

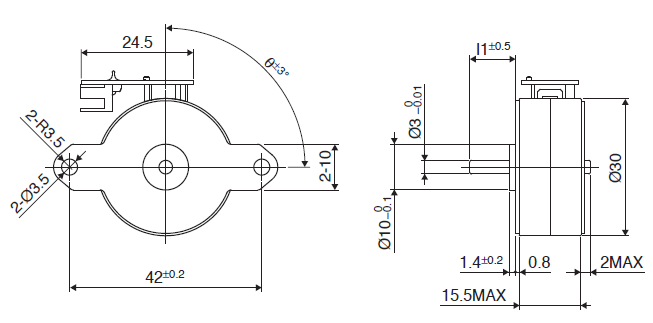

Outer Diameter [mm]	Length [mm]	Step No.	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Step Angle [deg]	Drive Method	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
30.0	15.50	48	Polar anisotropy ferrite sintered magnet (MS50)	100	500	7.50	2-2 phase	CLASS E	-10	50	-30	80	20	90

*Bipolar only. Unipolar is not available.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

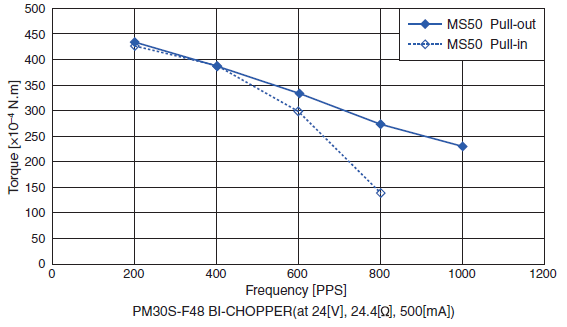

Drive Circuit

Drive Voltage
[V]

Current/Phase
[mA]

Coil Resistance/Phase
[Ω]

Drive IC

BIPOLAR CHOPPER 24 500.0 24.4 BD63877EFV
OA Equipment: Printers / Scanners
Industrial equipment: Flow control valves
Home automation appliances: Sewing machines
Catalog
- PDF product catalog
CAD
- 3D/2D CAD

Drive Circuit	Drive Voltage [V]	Current/Phase [mA]	Coil Resistance/Phase [Ω]	Drive IC
BIPOLAR CHOPPER	24	500.0	24.4	BD63877EFV
