PM stepping motors Standard type
PM42S-N96
Appearance
Reference Characteristics
Outer Diameter [mm] |
42.0 |
---|---|
Length [mm] |
15.50 |
Step No. | 96 |
Magnet Material | Nd-Fe-B bonded magnet(MS70) |
Insulation Resistance (M) [Ω/min] |
100 |
Dielectric Strength (AC) [V/min] |
500 |
Step Angle [deg] |
3.75 |
Drive Method | 2-2 phase |
Class of Insulation | CLASS E |
Operating Temp. lower limit [deg.C] |
-10 |
Operating Temp. upper limit [deg.C] |
50 |
Storage Temp. lower limit [deg.C] |
-30 |
Storage Temp. upper limit [deg.C] |
80 |
Operating Hum. RH lower limit [%] |
20 |
Operating Hum. RH upper limit [%] |
90 |

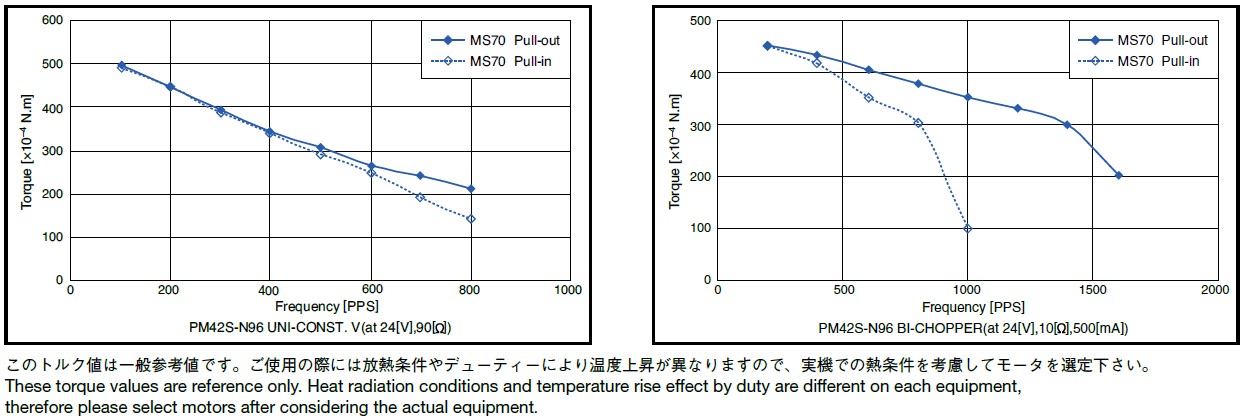

Torque Characteristic

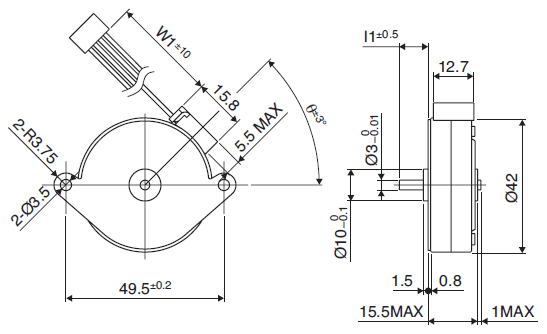

Overall View
Specifications
Drive Circuit | Drive Voltage [V] |
Current/Phase [mA] |
Coil Resistance/Phase [Ω] |
Drive IC |
---|
Applications
OA Equipment:Printers / Scanners
Industrial equipment:Flow control valves
Toys:Slot machines
Home automation appliances:Sewing machines
