PM stepping motors Small diameter type
SMS6-F40
Appearance
Reference Characteristics
| Outer Diameter [mm] |
6.0 |
|---|---|
| Length [mm] |
5.35 |
| Step No. | 40 |
| Magnet Material | Nd-Fe-B bonded magnet (N51) |
| Insulation Resistance (M) [Ω/min] |
1 |
| Dielectric Strength (AC) [V/min] |
100 |
| Step Angle [deg] |
9.00 |
| Drive Method | 2-2 phase |
| Class of Insulation | CLASS E |
| Operating Temp. lower limit [deg.C] |
-10 |
| Operating Temp. upper limit [deg.C] |
50 |
| Storage Temp. lower limit [deg.C] |
-25 |
| Storage Temp. upper limit [deg.C] |
60 |
| Operating Hum. RH lower limit [%] |
5 |
| Operating Hum. RH upper limit [%] |
85 |
*Bipolar only. Unipolar is not available.
*No dew condensation.

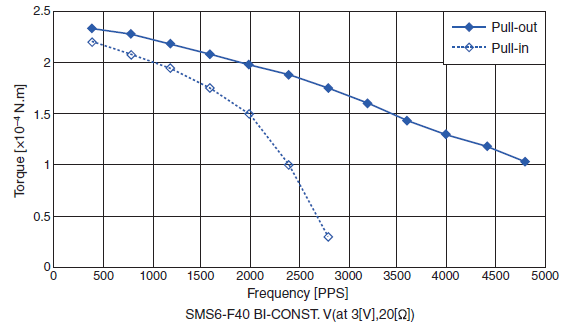

Torque Characteristic

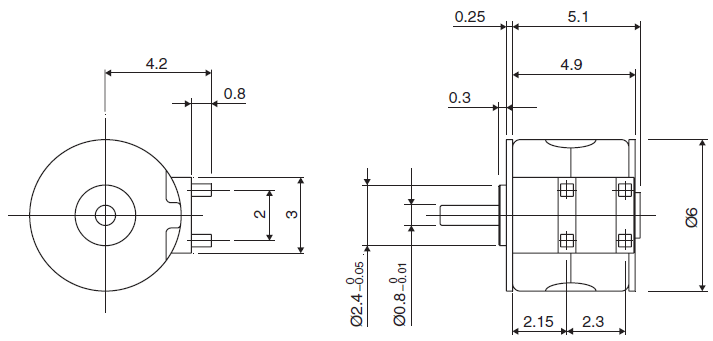

Overall View
Specifications
| Drive Circuit | Drive Voltage [V] |
Coil Resistance/Phase [Ω] |
Drive IC |
|---|
Applications
Optical instrument:Digital cameras / Blu-ray Aberration correction
Telecommunication Equipment:Smart phone / Tablet
