Small diameter type

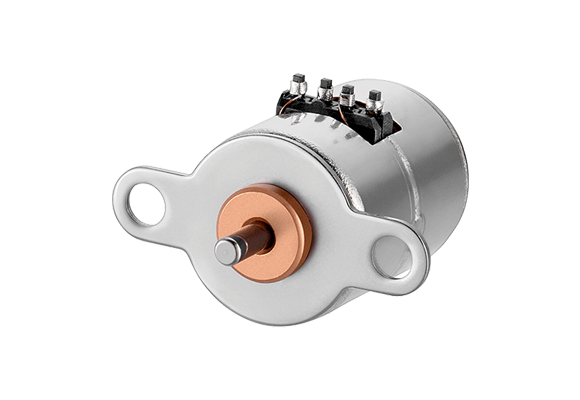

We have stepping motors which are very small in diameter, used in lens barrels of digital cameras and optical aberration of Blu-ray disc drives.These stepping motors are small and thin, has high torque, with more steps and improvement in positioning accur.

Download

Parts List
Engineering Information
Case Studies
Industry

Small diameter type Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Outer Diameter [mm]	Length [mm]	Step No.	Step Angle [deg]	PDF	CAD Data Download
SM3.4-F20	3.4	4.95	20	18.00	PDF	3D/2D CAD
SM4.3-F20	4.3	5.65	20	18.00	PDF	3D/2D CAD
SM5-F20	5.0	5.95	20	18.00	PDF	3D/2D CAD
SMSSH5-F20	5.0	4.35	20	18.00	PDF	3D/2D CAD
SMH6-F20	6.0	7.85	20	18.00	PDF	3D/2D CAD
SMS6-F20	6.0	5.35	20	18.00	PDF	3D/2D CAD
SMS6-F40	6.0	5.35	40	9.00	PDF	3D/2D CAD
SMSH6-F20	6.0	5.35	20	18.00	PDF	3D/2D CAD
SMSSH6-F20	6.0	4.35	20	18.00	PDF	3D/2D CAD
SMSSH7-F20	7.0	4.30	20	18.00	PDF	3D/2D CAD
SMH8-F20	8.0	9.30	20	18.00	PDF	3D/2D CAD
SMSH8-F20	8.0	7.10	20	18.00	PDF	3D/2D CAD
SMSH8-F40	8.0	7.10	40	9.00	PDF	3D/2D CAD
SMSSH8-F20	8.0	4.90	20	18.00	PDF	3D/2D CAD
SMC10-F20	10.0	10.70	20	18.00	PDF	3D/2D CAD
SML10-F20	10.0	14.20	20	18.00	PDF	3D/2D CAD
