PM stepping motors Small diameter type

SMSH8-F40

Characteristic

Reference Characteristics

Outer Diameter
[mm]
Length
[mm]
Step No. Magnet Material Insulation Resistance (M)
[Ω/min]
Dielectric Strength (AC)
[V/min]
Step Angle
[deg]
Drive Method Class of Insulation Operating Temp.
lower limit
[deg.C]
Operating Temp.
upper limit
[deg.C]
Storage Temp.
lower limit
[deg.C]
Storage Temp.
upper limit
[deg.C]
Operating Hum. RH
lower limit
[%]
Operating Hum. RH
upper limit
[%]
8.0 7.10 40 Nd-Fe-B bonded magnet (N51) 1 100 9.00 2-2 phase CLASS E -10 50 -25 60 5 85

*Bipolar only. Unipolar is not available.
*No dew condensation.

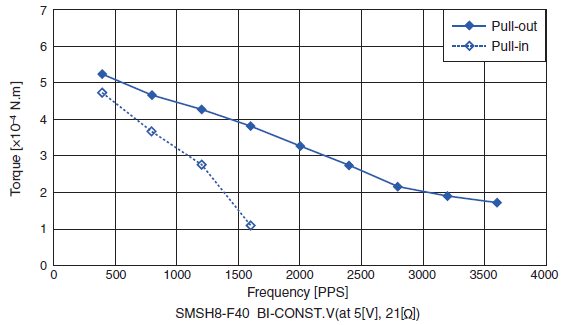

Torque Characteristic

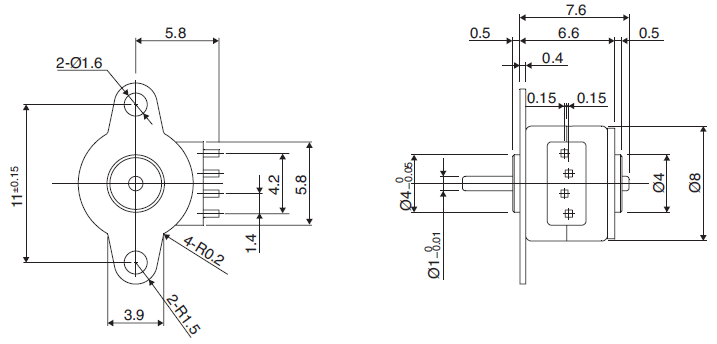

Overall View

Specifications

Drive Circuit Drive Voltage
[V]
Coil Resistance/Phase
[Ω]
Drive IC

Applications

OA Equipment:Network cameras
Optical instrument:Digital cameras / Microscope
