PM stepping motors Small diameter type

SMSSH5-F20

Appearance

Reference Characteristics

Outer Diameter
[mm]
5.0
Length
[mm]
4.35
Step No. 20
Magnet Material Nd-Fe-B bonded magnet (N51)
Insulation Resistance (M)
[Ω/min]
1
Dielectric Strength (AC)
[V/min]
100
Step Angle
[deg]
18.00
Drive Method 2-2 phase
Class of Insulation CLASS E
Operating Temp.
lower limit
[deg.C]
-10
Operating Temp.
upper limit
[deg.C]
50
Storage Temp.
lower limit
[deg.C]
-25
Storage Temp.
upper limit
[deg.C]
60
Operating Hum. RH
lower limit
[%]
5
Operating Hum. RH
upper limit
[%]
85

*Bipolar only. Unipolar is not available.
*No dew condensation.

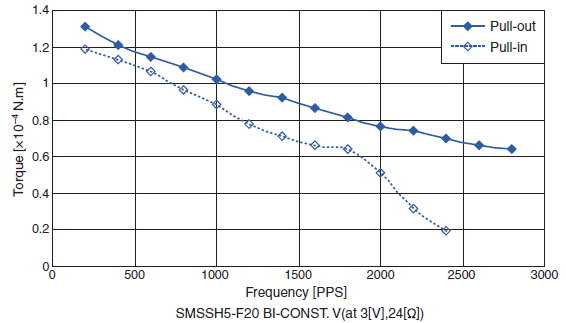

Torque Characteristic

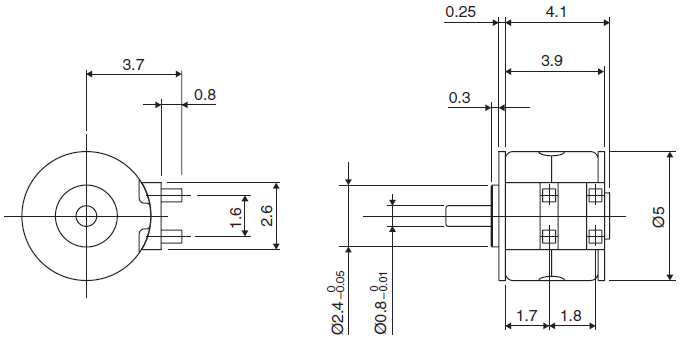

Overall View

Specifications

Drive Circuit Drive Voltage
[V]
Coil Resistance/Phase
[Ω]
Drive IC

Applications

Optical instrument:Digital cameras / Blu-ray Aberration correction
Telecommunication Equipment:Smart phone / Tablet

Download

Associated Data

CAD
