PM stepping motors High speed type

M42SP-13NK

Characteristic

Reference Characteristics

Outer Diameter
[mm]
Length
[mm]
Step No. Magnet Material Insulation Resistance (M)
[Ω/min]
Dielectric Strength (AC)
[V/min]
Step Angle
[deg]
Drive Method Class of Insulation Operating Temp.
lower limit
[deg.C]
Operating Temp.
upper limit
[deg.C]
Storage Temp.
lower limit
[deg.C]
Storage Temp.
upper limit
[deg.C]
Operating Hum. RH
lower limit
[%]
Operating Hum. RH
upper limit
[%]
42.0 17.70 96 Neodymium bonded magnet 100 500 3.75 2-2 phase CLASS E 0 50 -20 70 5 90

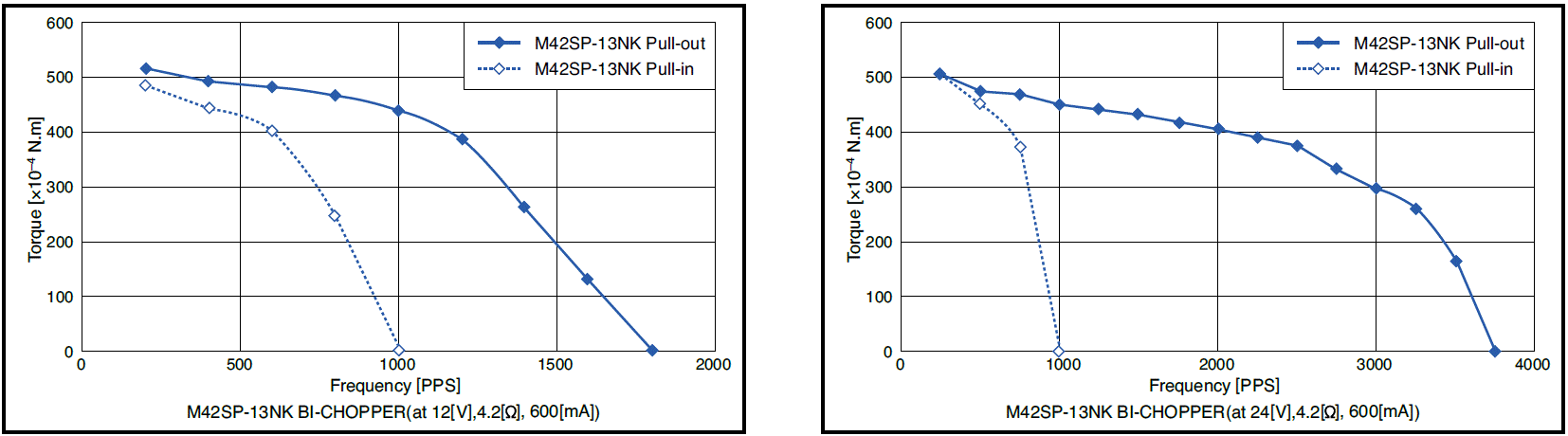

Torque Characteristic

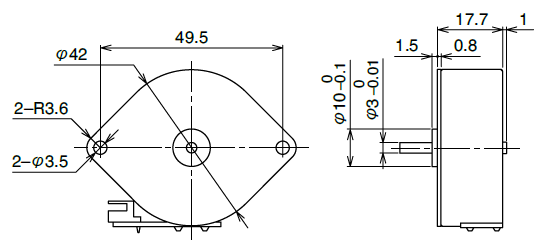

Overall View

Specifications

Drive Circuit Drive Voltage
[V]
Current/Phase
[mA]
Coil Resistance/Phase
[Ω]
Drive IC

Product customizations by MinebeaMitsumi

We customize products through technological consultations, sample productions, optional functionalities, and other forms of support we offer to meet your demands.
