PG20L-C20

This newly developed geared motor uses a molded planetary gearbox.
Large reduction ratios can be realized in a compact size, along with high output and high resolution.
The controllability that characterizes our PM motors has also been maintained,
allowing for simplification of the system structure and easy handling.

scroll

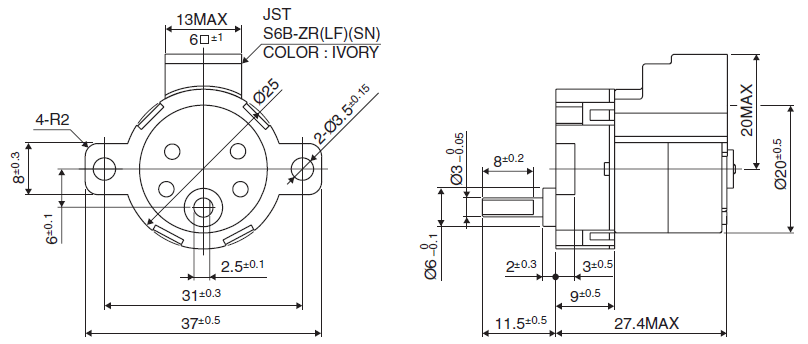

Outer Diameter [mm]	Length [mm]	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Drive Method	Resistance [Ω]	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
20.0	27.40	Nd-Fe-B bonded magnet (MS80)	100	500	2-2 phase	300.0	Class E（Except lead wire）	0	65	-30	80	20	90

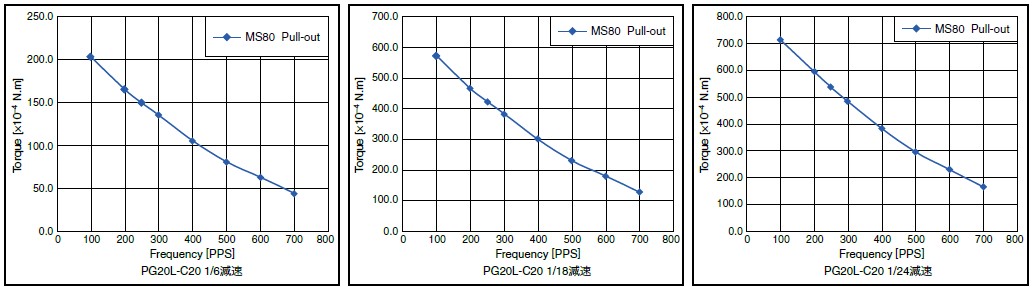

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Drive Circuit	Drive Voltage [V]	Drive IC	Operation Frequency	Max.Load Torque	Gear Ratio [1:X]	Step Angle [°]
UNIPOLAR CONST. VOLT.	18	2SC3346	250pps Continuous run	Continuous 19.6mNm (Reference) Instantaneous 98mNm (Reference)	1:6	3.000
UNIPOLAR CONST. VOLT.	18	2SC3346	250pps Continuous run	Continuous 19.6mNm (Reference) Instantaneous 98mNm (Reference)	1:18	1.000
UNIPOLAR CONST. VOLT.	18	2SC3346	250pps Continuous run	Continuous 19.6mNm (Reference) Instantaneous 98mNm (Reference)	1:24	0.750

Home electric appliances:Air-conditioners
OA Equipment:Printers / Photocopiers
Power Tools:Drills / Drivers
