With Gearbox

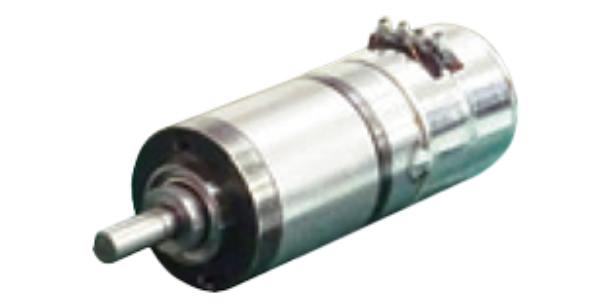

This newly developed geared motor uses a molded planetary gearbox.
Large reduction ratios can be realized in a compact size, along with high output and high resolution.
The controllability that characterizes our PM motors has also been maintained,
allowing for simplification of the system structure and easy handling.
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Outer Diameter |
Length |
|
CAD Data Download |
|---|---|---|---|---|
| PG6-K20 | 6.0 | 3D/2D CAD | ||
| PG6L-K20 | 6.0 | 3D/2D CAD | ||
| PG8-K20 | 8.0 | 3D/2D CAD | ||
| PG8L-K20 | 8.0 | 3D/2D CAD | ||
| PG10-K20 | 10.0 | 3D/2D CAD | ||
| PG15S-J20/D20 | 15.0 | 22.50 | 3D/2D CAD | |
| PG15S-K20 | 15.0 | |||
| PG20S-D20 | 20.0 | 27.50 | 3D/2D CAD | |
| PG20L-C20 | 20.0 | 27.40 | 3D/2D CAD | |
| PG20L-D20 | 20.0 | 31.50 | 3D/2D CAD | |
| PG20L-K20 | 20.0 | |||
| PG25S-D48 | 25.0 | 24.50 | 3D/2D CAD | |
| PG25L-D24 | 25.0 | 29.00 | 3D/2D CAD | |
| PG25L-K24 | 25.0 | |||
| PG35S-D48 | 35.0 | 38.50 | 3D/2D CAD | |
| PG35L-D48 | 35.0 | 45.00 | 3D/2D CAD |
