PG20L-K20

This newly developed geared motor uses a molded planetary gearbox.
Large reduction ratios can be realized in a compact size, along with high output and high resolution.
The controllability that characterizes our PM motors has also been maintained,
allowing for simplification of the system structure and easy handling.

scroll

Outer Diameter [mm]	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Carrent/Phase(Peak) [mA]	Drive Method	Resistance/Phase [Ω]	Insulation resistance	Dielectric Strength	Class of Insulation	Temparature Rise MAX [deg.C]	Ambient Temperature Range lower limit [deg.C]	Ambient Temperature Range upper limit [deg.C]	Radial Play [mm]	Radial Play Note	Axial Play [mm]
20.0	Nd-Fe-B bonded magnet (MS70)	100	500	400	2-2 phase	7.0	100M[Ω]Min. at DC500[V]	AC500[V] 1[min]	Class E（Except lead wire）	65	-10	50	0.03	*6[mm] from flange	0.25

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Drive Circuit	Drive Voltage [V]	Current/Phase [mA]	Drive IC	Gear Ratio [1:X]	Step Angle [°]	Rated Torque [mN・m]	Rated Torque [gf･cm]	Maximum Instantaneous Torque [mN・m]	Maximum Instantaneous Torque [gf･cm]	Gearhead length L1 [mm]
PG20L-K20-0004	BIPOLAR CHOPPER	12	7.0	LB1847	1:4	4.500	49.0	500.0	73.5	750	13.1

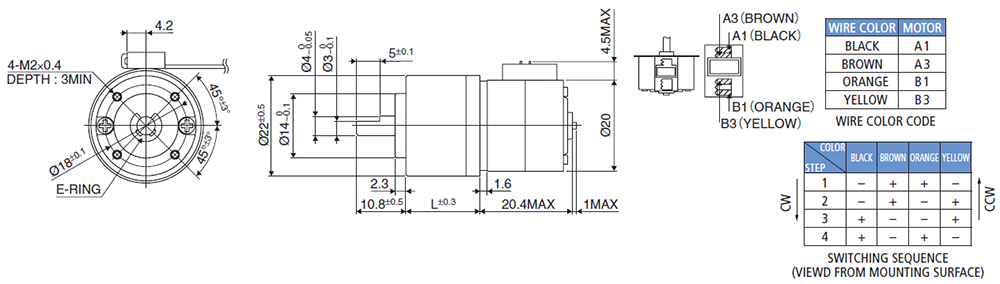

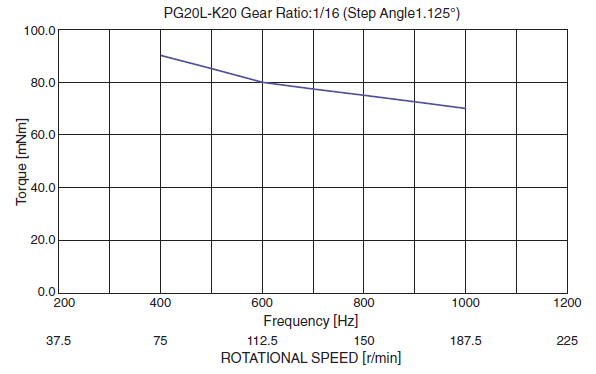

PG20L-K20-0016	BIPOLAR CHOPPER	12	7.0	LB1847	1:16	1.125	73.5	750.0	110.3	1125	16.2
PG20L-K20-0024	BIPOLAR CHOPPER	12	7.0	LB1847	1:24	0.750	73.5	750.0	110.3	1125	16.2
PG20L-K20-0064	BIPOLAR CHOPPER	12	7.0	LB1847	1:64	0.281	98.0	1000.0	147.0	1500	19.3
PG20L-K20-0096	BIPOLAR CHOPPER	12	7.0	LB1847	1:96	0.187	98.0	1000.0	147.0	1500	19.3
PG20L-K20-0144	BIPOLAR CHOPPER	12	7.0	LB1847	1:144	0.125	98.0	1000.0	147.0	1500	19.3

Optical Equipment：Projector ／ Security Camera
Medical Equipment：Blood Analyzer ／ Tube Pump
Industrial Equipment：Flow Control Valves ／ Antenna
Adjustment Device
Power Tools：Drills ／ Drivers
