PG35L-D48

This newly developed geared motor uses a molded planetary gearbox.
Large reduction ratios can be realized in a compact size, along with high output and high resolution.
The controllability that characterizes our PM motors has also been maintained,
allowing for simplification of the system structure and easy handling.

scroll

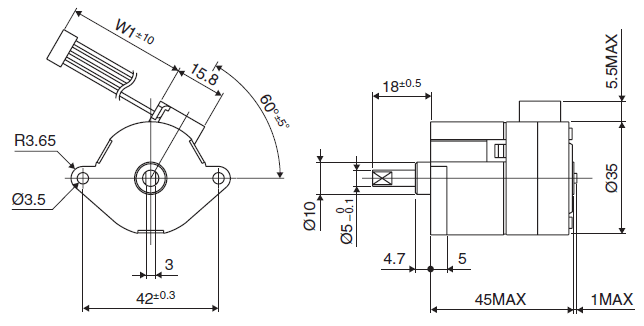

Outer Diameter [mm]	Length [mm]	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Carrent/Phase(Peak) [mA]	Drive Method	Resistance [Ω]	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
35.0	45.00	Ferrite plastic magnet (MSPL)	100	500	400	2-2 phase	70.0	Class E（Except lead wire）	0	50	-30	80	20	90

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Drive Circuit

Drive Voltage
[V]

Gear Ratio
[1:X]

Step Angle
[°]

UNIPOLAR CONST. VOLT. 12 1:35.4 0.212

UNIPOLAR CONST. VOLT. 12 1:89.8 0.084
Home electric appliances:Air-conditioners
OA Equipment:Printers / Photocopiers
Power Tools:Drills / Drivers
Catalog
- PDF product catalog
CAD
- 3D/2D CAD

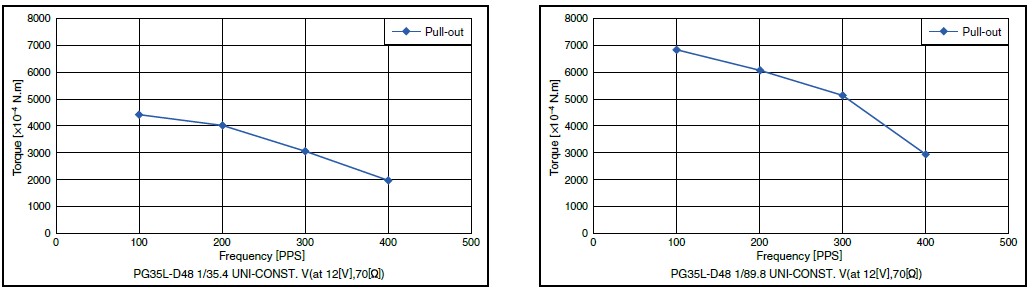

Drive Circuit	Drive Voltage [V]	Gear Ratio [1:X]	Step Angle [°]
UNIPOLAR CONST. VOLT.	12	1:35.4	0.212
UNIPOLAR CONST. VOLT.	12	1:89.8	0.084
