Digital Indicator

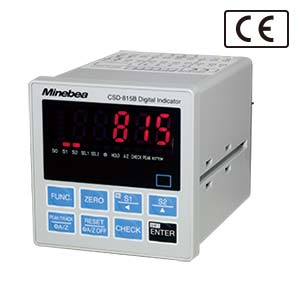

Digital Indicator CSD-815B
Features
・ Digital indicator for the strain gage transducers 96 mm x 96 mm.
・ Equipped with peak hold function.
・ Equipped with CC-Link interface.
・ Protection grade : IP65
・ CE mack applied.
Specification
| Specification name | Specification contents |
|---|---|
| Bridge power supply | 5 VDC±0.25VDC within 60 mA (Changeable to 2.5 VDC) |
| Input range | F.S. setting is available with the input range from 0.4 mV/V to 3.1 mV/V.(When the bridge power supply is 5 VDC) |
| Output range | ±5 VDC Load resistanceis 5 kΩ or more. (F.S. setting is available by function) |
| Output times | Changeable to 4 times/s,20 times/s, 50 times/s or 100 times/s.(Synchronous with display rate.) |
| Output resolution | Approx. 1/12 000 |
| Zero adjustment range | ±2.4 mV/V |
| Non-linearity | Display 0.01 %F.S., Output 0.05 %F.S. |
| Input noice | ±0.6 μVp-p or less (With a default setting of digital filter andstabilized filter) |
| Input filter | 2 Hz (Changeable to 10 Hz, 100 Hz or 2kHz) |
| A/D sampling speed | 100 times/s |
| CHECK | Approx. 0.3 mV/V (Setting with the interval of about 0.1 mV/V is available in the range fromapprox.0.1 mV/V to 1.5 mV/V.) |
| Load display | 7 segment red LED with 17 mm character’s height |
| Display range | -99 999 ~ 99 999 |
| Display times | 4 times/s (Changeable to 20 times/s, 50 times/s or 100times/s) |
| External control function | ZERO, PEAK/TRACK/A/Z, HOLD, RESET/A/ZOFF, SEL1, SEL2 |
| Comparator function | Set value ：－99 999～99 999 -99 999 ~ 99 999 Set quantity ：3 points of S0, S1 and S2 *"S0" is set by function command. Conversion times ofcomparator ："Changeable to 4 times/s, 20 times/s, 50 times/s or 100times/s (Syncronous with display times)*During the display of set value, process of measurementand also process of comparator are interrupted. " |
| Various functions | Zero tracking, Degital filter, Stabilization filter, Change of HOLD target, Sheet key lock, Selection of Peak mode, Chenge of analog output target. |
| Operating temp. /humidity range |
Temperature -10 ℃~ 50 ℃, Humidity 85 %RH or less(Non condensing) |
| Power supply voltage | 100 VAC ~ 240 VAC 50/60Hz 100 VAC ~ 240 VAC 50/60Hz (permissible variable range from 85 VAC to 264 VAC) |
| Power consumption | Approx. 9 VA (withoutoptions, at 100 VAC) Approx.18 VA at maximum (with options, at 100VAC ~ 240 VAC) |
| Outline dimensions (WxHxD) |
96 mm x 96 mm x 129.5mm (excludes protruding parts) |
| Weight | Approx. 500 g (without options) |
| Protection code | IP65 or equivalent (Only for the fron panel when the attached panel mounting gascket is installed. |
Download
Instruction Manual
Specification
CAD
Options
- Current output
- BCD output
- RS-232C interface
- RS-422/485 interface
- CC-Link interface
