MBYT, MBYT-V

Spherical Self Lubricating High Misalignment

Spherical bearings are self aligning bearings used extensively on the driven parts in the aerospace, automobiles, railways and industrial machines. We offer distinctive products that will fit your needs, such as PTFE bearings that have a self-lubricating function, or metal to metal bearings that perform well under static and high load environment.
Please consult with our sales unit when designing for special purposes.

Feature of a Product

・Self lubricating
The PTFE lining is bonded to the inner diameter of the race. The PTFE Liner acts as a lubricant and therefore no other lubrication is necessary. Thus they are eminently suitable to apply where re-lubrication is impractical or impossible. More over, as they don't require any lubrication, they are effective to lower the maintenance cost. They perform well under slow fluctuation velocity and oscillation load. Therefore PTFE type can induce the difficulties of metal/metal type such as high friction, seizure, fatigue destruction and fretting on the fluctuating surface.

Dimensions in mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

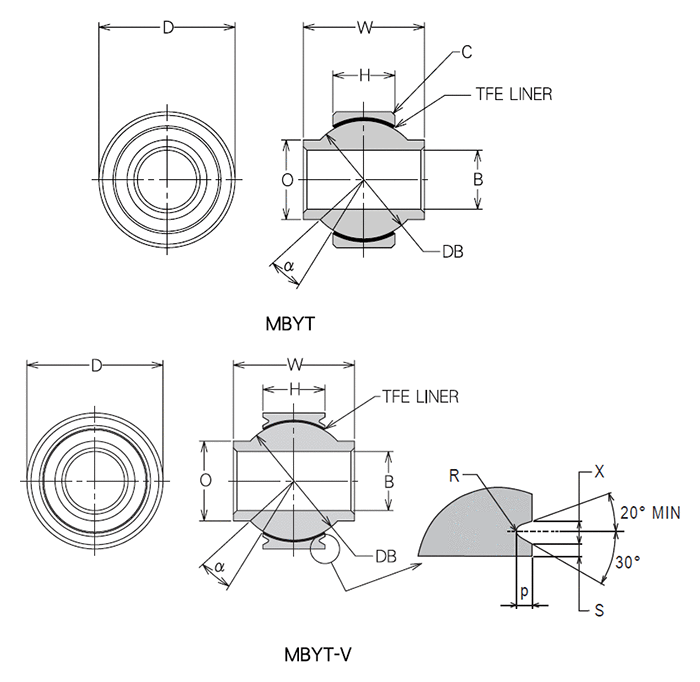

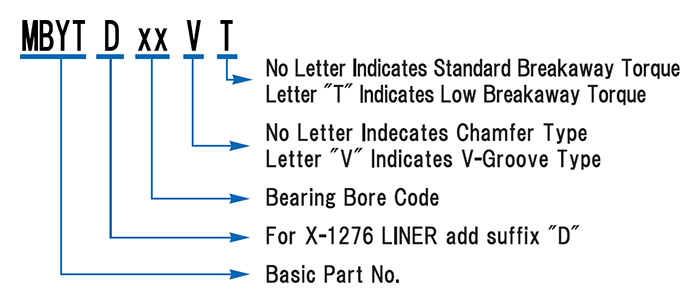

Part No.	øB H7	φD 0-0.013	W 0-0.13	H ±0.13	α DEG	øO(REF)	SøDB(REF)	No Load Rotational Breakaway Torque - Standerd Type lower limit [N･m]	No Load Rotational Breakaway Torque - Standerd Type upper limit [N･m]	No Load Rotational Breakaway Torque - Standerd Type lower limit [kgf・cm]	No Load Rotational Breakaway Torque - Standerd Type upper limit [kgf・cm]	Chamfer C±0.2	Staking groove S 0-0.25	Staking groove X 0-0.25	Staking groove R 0-0.25	Staking groove P 0-0.4	Static Limit load(Radial) [kN]	Static Limit load(Axial) [kN]	Dynamic Load [kN]	Approx. Weight [g]
MBYT5/MBYT5V	5	14.0	12.5	5.00	17	8.0	11.100	0.06	0.57	0.6	5.8	0.5	0.5	1.0	0.4	0.7	18.63	1.96	7.84	8
MBYT6/MBYT6V	6	19.0	15.0	6.50	23	10.0	15.100	0.12	0.57	1.2	5.8	0.5	0.5	1.0	0.4	0.7	36.26	3.43	14.70	18
MBYT8/MBYT8V	8	18.0	16.0	6.50	20	10.5	15.100	0.12	0.57	1.2	5.8	0.5	0.5	1.0	0.4	0.7	36.26	3.43	14.70	15
MBYT10/MBYT10V	10	23.0	20.5	8.50	22	13.5	20.000	0.12	0.57	1.2	5.8	0.6	0.7	1.4	0.5	1.0	63.70	5.97	28.42	32
MBYT12/MBYT12V	12	26.0	22.0	8.50	22	16.0	22.500	0.12	0.57	1.2	5.8	0.6	0.7	1.4	0.5	1.0	72.03	5.97	32.34	42
MBYT14/MBYT14V	14	29.0	23.5	10.00	20	19.0	26.000	0.12	0.57	1.2	5.8	0.6	0.7	1.4	0.5	1.0	98.00	8.33	44.10	60
MBYT15/MBYT15V	15	33.0	26.0	12.00	19	20.0	28.000	0.12	0.57	1.2	5.8	0.6	0.7	1.4	0.5	1.0	135.24	18.62	60.76	86
MBYT16/MBYT16V	16	35.0	30.5	14.00	21	21.5	31.800	0.12	0.57	1.2	5.8	0.6	0.7	1.4	0.5	1.0	179.34	25.48	80.36	120
MBYT18/MBYT18V	18	38.0	33.0	14.50	15	23.5	32.000	0.12	0.57	1.2	5.8	0.6	0.7	2.0	0.5	1.5	187.18	27.44	83.30	135
MBYT20/MBYT20V	20	40.0	35.5	15.50	18	25.0	35.000	0.23	0.90	2.3	9.2	0.8	0.7	2.0	0.5	1.5	219.52	31.36	98.00	155
MBYT22/MBYT22V	22	44.0	35.5	15.50	18	29.0	38.800	0.23	0.90	2.3	9.2	1.0	0.7	2.0	0.5	1.5	243.04	31.36	108.78	200

scroll

(P/N)

RACE

BALL

LINER

MBYT, MBYT-V 410 Stainless Steel 440C Stainless Steel PTFE / Fabric
1. PTFE liner permanently bonded to race I.D.
2. MBYT & MBYT-V weights are similar.
3. Made to order only.
4. No Load Rotational Breakaway Torque.
Low Torque All Size: 0.02N・m MAX (Radial Clearance 0.05mm MAX)

*Please consult MinebeaMitsumi for availability of bearings in this series.
