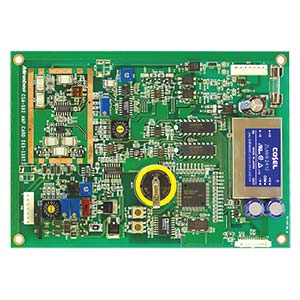

PCB type Transmitter CSA-592 for tie bar measurement system

Discontinued Products

【What is tie bar Gage Measurement System】

It is a tensionmeter using the strain gage, and the system to measure the clamping force and the opening force by installing to the tie bar such as an injection molding machine.

・ All of bonding the strain gage and additional workers to the tie rod are not necessary.
・ The stability of the temperature characteristic has been maintained by developing a special strain gage.
・ Please choose the mounting attachment device from 2 varieties for inspectin use that can be easily detached, or for control use with cheap cost and excellent long term stability.
・ Clamping force can be recorded nad controled by retrieving the data from the indicator to the PC.

【Applied example】

・ Balance adjustment
Aiming at the adjustment of the tightening force of the fittings to become even by measuring the difference of clamping force distributed to the tie bar.

・ Detect the overload to the tie bar.

・ Operation management
Clamping force is recorded by using the PC.

・ Control
Use for control the tightening operation.

Features

・PCB type transmitter exclusiver use for tie bar gage.
・Suitable for the control of the mold tightening operation of the injection molding machine.

Alternative

CSA-591-99

scroll

Specification name	Specification contents
Bridge power supply	8 VDC±0.3VDC within 30 mA
Applicable transducer	1 unit of tie-bar gage (350 Ω type 2 pieces a couple)
Input range	±300 μst ~ ±2 000 μst
Output voltage	±10 V output
Output load resistance	2 kΩ or more
Zero adjustment range	Coarse adjustment Approx. ±10 000 μst adjustable by 16 steps rotaryswitch. Fine adjustment Approx. ±3 000 μst adjustable by fine/coarse adjustment trimmer
Sensitivity adjustablerange	Coarse adjustment Approx.±10 000 μst adjustable by 16 steps rotaryswitch. Fine adjustment Adjustable by trimmer
Non-linearity	0.1 %F.S.
Temperature efficient	Zero ±10 μV/℃ (Input conversion) , Sensitivity ±0.05 %F.S./℃
CALIB	300 μST±15 μst for 1 point
Frequency response range	Approx. 100 Hz, or Approx.30 Hz
Operating temp./humidity range	0 ℃ ~ 50 ℃, 80 %RH or less ((Non condensing)
Power supply voltage	24 VDC (18 VDC ~ 36 VDC)
Power consumption	Approx. 0.15 A (at 24 VDC)
Outline dimensions (WxHxD)	160 x 110 x 20 (mm) (excludes protruding parts)
Weight	Approx. 0.5 kg

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.

Outline dimension
(WxHxD)
[mm]

Weight(Approx. )
[kg]

CSA-592 160 x 110 x 20 (excludes protruding parts) 0.5
CAD
- csa592.dxf
