Tie bar measurement system

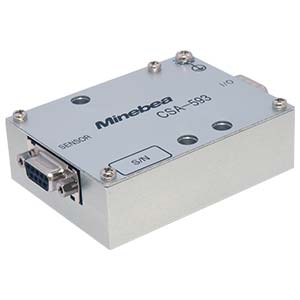

PCB type Transmitter CSA-593 for tie bar measurement system
Features
・ Special transmitter for tie-bar gage.
・ Suitable for the control of the injection molding machine clamping operation.
・ The noise proof has improved.
・ Fast responsiveness and compact size.
・ The working efficiency improves by the connector detaching type.
・ The low price was achieved.
Specification
| Specification name | Specification contents |
|---|---|
| Bridge power supply | 5 VDC±0.3 VDC within 30 mA以 |
| Applicable transducer | One pair of tie bar gage (350 Ω) |
| Input range | ±500 μst |
| Output voltage | ±10 V |
| Output load resistance | 10 kΩ or more |
| Sensitivity | 10 V output at the input of 500 μst |
| Non-linearity | 0.02 %F.S. (Transmitter itself) |
| Temperature efficient | Zero ±10 μV/℃ (Input conversion), Sensitivity ±0.05 %F.S./℃ |
| Frequency response range | Approx. 100 Hz (Fixed) |
| A/D sampling | 2 000 times/s |
| A/D internal resolution | 24 bit |
| Output frequency | 2 000 times/s (Synchronous with A/D sampling rate) |
| Outptu resolution | Approx. 1/10 000 |
| Specifications of auto zero | Range Approx. ±3 000 μst Required time Approx. 50 ms Accuracy within ±5 V External input 1 point * The result of auto zero is not retained in blacking out. |
| Check function | Output Approx. 5 V External input 1 point * This function is the usage for maintenance. |
| Operating temp./humidity range | -10 ℃ ~ 70 ℃, 80 %RH or less ((Non condensing) |
| Power supply voltage | DC24 V (Permissible variable range DC20 V ~ DC26 V) |
| Power consumption | within approx. 50 mA (at DC24 V) |
| Outline dimensions (WxHxD) | 86.4 x 61 x 24.5 (mm) (Excludes connector and protruding parts.) |
| Weight | Approx. 0.5 kg |
Table of P/N
| Parts No. | Outline dimension (WxHxD) [mm] |
Weight(Approx. ) [kg] |
|---|
Accessories
Instruction manual 1 piece
