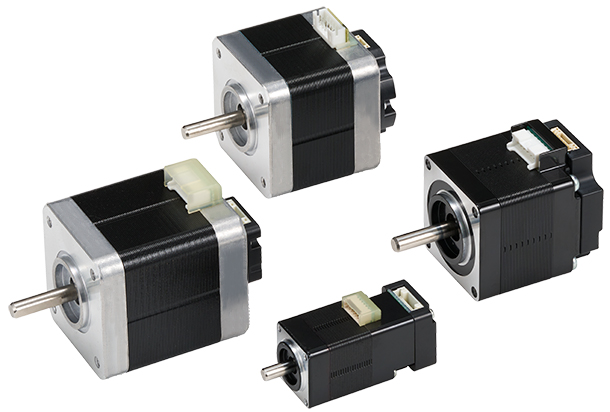

Encoder type

Our hybrid stepping motor with encoders are two-phase stepping motors that use MinebeaMitsumi's high-performance ball bearings and come equipped with sensors that detect the positions of the rotors (optical rotary encoder). These motors can obtain information such as rotating speed, rotational direction, angle of rotation and amount of rotation as an output pulse.
Encoder specification: Optical encoder, 3-channel, 1600, 2400 and 4000CPR, Output Type Line driver.

Download

Parts List
Engineering Information
Case Studies
Industry

Encoder type Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Outer Diameter [mm]	Step Angle upper limit [°]	Encoder Resolution [CPR]	Encoder type	PDF	CAD Data Download
A08PM(SZ Series)	20.0	1.80	1600	Optical	PDF	3D/2D CAD
A10PM(SZ Series)	25.0	1.80	2400	Optical	PDF	3D/2D CAD
A14PM(SZ Series)	35.0	1.80	3200	Optical	PDF	3D/2D CAD
A17PM(SZ Series)	42.0	1.80	4000	Optical	PDF	3D/2D CAD
A23KM(SZ Series)	56.4	1.80	4000	Optical	PDF	3D/2D CAD
A34KM(SZ Series)	85.0	1.80	4000	Optical	PDF	3D/2D CAD
A10PM(IG Series)	25.0	1.80	400	Optical	PDF	3D/2D CAD
A14PM(IG Series)	35.0	1.80	400	Optical	PDF	3D/2D CAD
A17PM(IG Series)	42.0	1.80	400	Optical	PDF	3D/2D CAD
A23KM(IG Series)	56.4	1.80	400	Optical	PDF	3D/2D CAD
N08PM(N Series)	20.0	1.80	4000	Magnetic
N10PM(N Series)	25.0	1.80	4000	Magnetic
N11PM(N Series)	28.0	1.80	4000	Magnetic
N14PM(N Series)	35.0	1.80	4000	Magnetic
N17PM(N Series)	42.0	1.80	4000	Magnetic
N23KM(N Series)	56.4	1.80	4000	Magnetic
