HRT-E

Male Self Lubricating 3 Piece

Rod end bearings are spherical bearings used extensively in the aerospace, automobiles, railways and industrial machines. While we offer a wide range of standard bearings herein, we are capable of manufacturing products that work in a broad range environment and meet a wide variety of needs.
Please consult with our sales unit when designing for special purposes.

Feature of a Product

Suitable for High load application.
Self-lubricating.

Consist of a spherical bearing staked into the Rod End body. They provide high strength, as main body material is chrome molybdenum steel (hardness 35HRC, tensile strength 980N/mm2{100kgf/mm2}). Material selection of spherical race is depending on applications and therefore, 3piece Rod End can bear sever requirements.

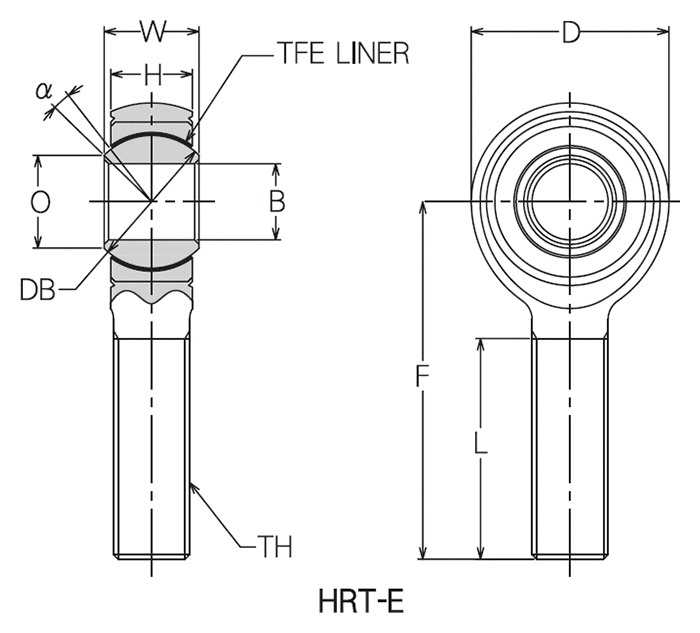

Dimensions in mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

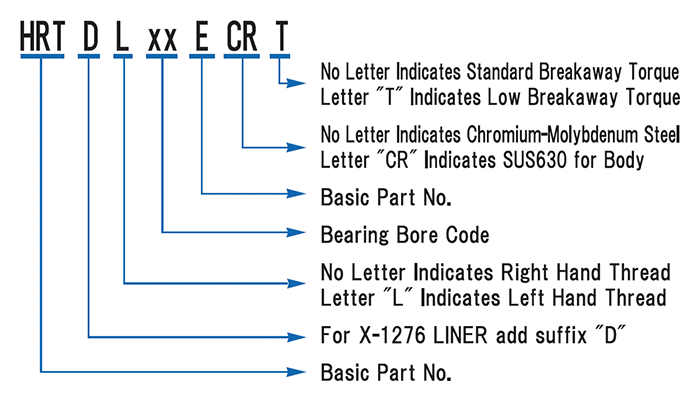

Part No.	øB H7	øD ±0.5	W 0-0.13	H ±0.13	F ±0.5	TH JIS CL2	L ±0.7	α DEG	øO(REF)	SøDB(REF)	No Load Rotational Breakaway Torque - Standerd Type lower limit [N･m]	No Load Rotational Breakaway Torque - Standerd Type upper limit [N･m]	No Load Rotational Breakaway Torque - Standerd Type lower limit [kgf・cm]	No Load Rotational Breakaway Torque - Standerd Type upper limit [kgf・cm]	Static Limit load(Radial) [kN]	Static Limit load(Axial) [kN]	Static Ultimate Load [kN]	Fatigue Load [kN]	Approx. Weight [g]
HRT5E	5	20.5	11.0	8.75	39.5	M5×0.8	22.0	15	7.8	13.49	0.06	0.68	0.6	6.9	10.29	5.09	12.84	2.10	35
HRT6E	6	20.5	11.0	8.75	39.5	M6×1.0	22.0	15	7.8	13.49	0.06	0.68	0.6	6.9	14.51	5.09	18.14	2.99	35
HRT8E	8	23.0	11.0	8.25	46.0	M8×1.25	29.0	14	10.9	15.48	0.12	1.13	1.2	11.5	26.77	5.29	33.44	5.54	40
HRT10E	10	26.0	12.5	10.75	47.0	M10×1.5	29.0	8	12.2	17.46	0.12	1.13	1.2	11.5	37.65	6.76	47.07	7.84	65
HRT12E	12	34.0	16.0	13.25	62.0	M12×1.75	37.0	10	15.4	22.22	0.12	1.13	1.2	11.5	62.46	8.33	78.06	12.94	126
HRT14E	14	36.0	17.0	14.25	64.0	M14×2.0	38.0	8	18.9	25.40	0.12	1.13	1.2	11.5	82.96	9.02	103.65	17.25	140
HRT15E	15	38.0	18.0	14.25	65.0	M14×2.0	38.0	11	19.0	26.19	0.12	1.13	1.2	11.5	100.71	9.70	125.81	20.98	165
HRT16E	16	39.0	19.0	15.25	66.5	M16×2.0	39.5	10	19.2	26.99	0.12	1.13	1.2	11.5	100.71	9.70	125.81	20.98	195
HRT17E	17	41.0	20.0	15.25	72.5	M16×1.5	42.0	12	20.4	28.58	0.12	1.13	1.2	11.5	101.40	10.29	126.70	21.08	220
HRT18E	18	43.0	20.0	16.30	79.5	M18×1.5	46.0	10	20.4	28.58	0.12	1.13	1.2	11.5	120.62	12.16	150.72	25.10	250
HRT20E	20	45.0	22.0	16.30	83.0	M20×1.5	50.0	13	22.9	31.75	0.12	1.13	1.2	11.5	121.30	12.84	151.61	25.20	290
HRT22E	22	52.0	22.0	19.30	86.0	M22×1.5	51.0	6	27.1	34.92	0.23	1.80	2.3	18.4	156.21	15.10	195.25	32.55	450
HRT25E	25	70.0	35.0	25.30	105.0	M24×2.0	59.0	15	32.3	47.62	0.23	1.80	2.3	18.4	300.08	20.88	375.10	62.56	1150
HRT28E	28	75.0	35.0	25.30	110.0	M27×2.0	62.0	14	36.8	50.80	0.23	1.80	2.3	18.4	283.70	23.24	354.60	59.13	1500
HRT30E	30	78.0	37.0	26.30	120.0	M30×2.0	65.0	14	40.4	54.77	0.23	1.80	2.3	18.4	271.93	24.81	339.89	56.68	1800
HRT5ECR	5	20.5	11.0	8.75	39.5	M5×0.8	22.0	15	7.8	13.49	0.06	0.68	0.6	6.9	10.29	5.09	12.84	2.10	35
HRT6ECR	6	20.5	11.0	8.75	39.5	M6×1.0	22.0	15	7.8	13.49	0.06	0.68	0.6	6.9	14.51	5.09	18.14	2.99	35
HRT8ECR	8	23.0	11.0	8.25	46.0	M8×1.25	29.0	14	10.9	15.48	0.12	1.13	1.2	11.5	26.77	5.29	33.44	5.54	40
HRT10ECR	10	26.0	12.5	10.75	47.0	M10×1.5	29.0	8	12.2	17.46	0.12	1.13	1.2	11.5	37.65	6.76	47.07	7.84	65
HRT12ECR	12	34.0	16.0	13.25	62.0	M12×1.75	37.0	10	15.4	22.22	0.12	1.13	1.2	11.5	62.46	8.33	78.06	12.94	126
HRT14ECR	14	36.0	17.0	14.25	64.0	M14×2.0	38.0	8	18.9	25.40	0.12	1.13	1.2	11.5	82.96	9.02	103.65	17.25	140
HRT15ECR	15	38.0	18.0	14.25	65.0	M14×2.0	38.0	11	19.0	26.19	0.12	1.13	1.2	11.5	100.71	9.70	125.81	20.98	165
HRT16ECR	16	39.0	19.0	15.25	66.5	M16×2.0	39.5	10	19.2	26.99	0.12	1.13	1.2	11.5	100.71	9.70	125.81	20.98	195
HRT17ECR	17	41.0	20.0	15.25	72.5	M16×1.5	42.0	12	20.4	28.58	0.12	1.13	1.2	11.5	101.40	10.29	126.70	21.08	220
HRT18ECR	18	43.0	20.0	16.30	79.5	M18×1.5	46.0	10	20.4	28.58	0.12	1.13	1.2	11.5	120.62	12.16	150.72	25.10	250
HRT20ECR	20	45.0	22.0	16.30	83.0	M20×1.5	50.0	13	22.9	31.75	0.12	1.13	1.2	11.5	121.30	12.84	151.61	25.20	290
HRT22ECR	22	52.0	22.0	19.30	86.0	M22×1.5	51.0	6	27.1	34.92	0.23	1.80	2.3	18.4	156.21	15.10	195.25	32.55	450
HRT25ECR	25	70.0	35.0	25.30	105.0	M24×2.0	59.0	15	32.3	47.62	0.23	1.80	2.3	18.4	300.08	20.88	375.10	62.56	1150
HRT28ECR	28	75.0	35.0	25.30	110.0	M27×2.0	62.0	14	36.8	50.80	0.23	1.80	2.3	18.4	283.70	23.24	354.60	59.13	1500
HRT30ECR	30	78.0	37.0	26.30	120.0	M30×2.0	65.0	14	40.4	54.77	0.23	1.80	2.3	18.4	271.93	24.81	339.89	56.68	1800

scroll

(P/N)	BODY	RACE	BALL	LINER
HRT-E	Chromium-Molybdenum Steel Zinc Plated	410 Stainless Steel / Heat Treated	440C Stainless Steel / Heat Treated	TFE
HRT-ECR	SUS630 Stainless Steel Passivated	410 Stainless Steel / Heat Treated	440C Stainless Steel / Heat Treated	TFE

*1 Axial load indicates either the smaller value of static load or proof load.
*2 Special specification can bare higher fatigue load.

1. PTFE liner permanently bonded to race I.D.
2. Made to order only.
3. No load rotational breakaway:Low torque type: All size: 0.02N･mMAX (Radial clearance 0.05mmMAX)

*Please consult MinebeaMitsumi for availability of bearings in this series.
