Target applications: Automotive antenna, camera and V2X, etc.
Coaxial connector with lock function is used for antenna and image data transfer.
Mini coaxial connector is smaller and possible to load higher transmission speed than FAKRA connector.
Features

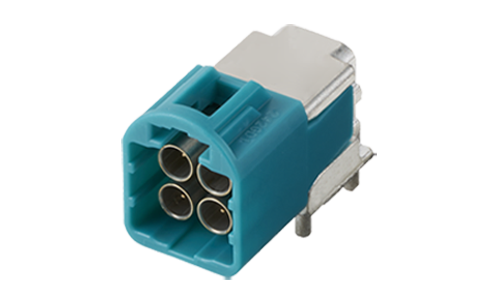

1. Quad, Angle type.
2. Suitable for automotive antennas, cameras, and V2X data transmission.
3. USCAR49 standard.
4. Capable to load 9 GHz of data transmission.
5. With lock function and prevent wrong mating.
6. RoHS compliant.
-
-
Electric Characteristics
Rated voltage: 60V DC Max
Rated current: 1A DC Max
Impedance: 50Ω
Contact resistance: 24mΩ max (contact pin)/ 10mΩ MA
Insulation resistance: 100MΩ Min
Dielectric withstanding voltage: 500V ACMechanical Characteristics
Durability(mating / unmating): 25 times
Insertion force: 45N Max
Withdrawal force: 75N Max
Retention force latch: 110N MinEnvironmental Characteristics
Operating temparature range: -30℃～85℃
-

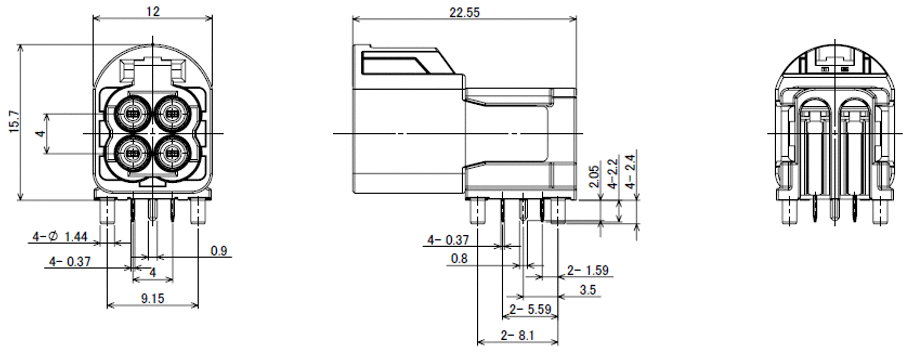

Unit:mm -
*Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
*The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
