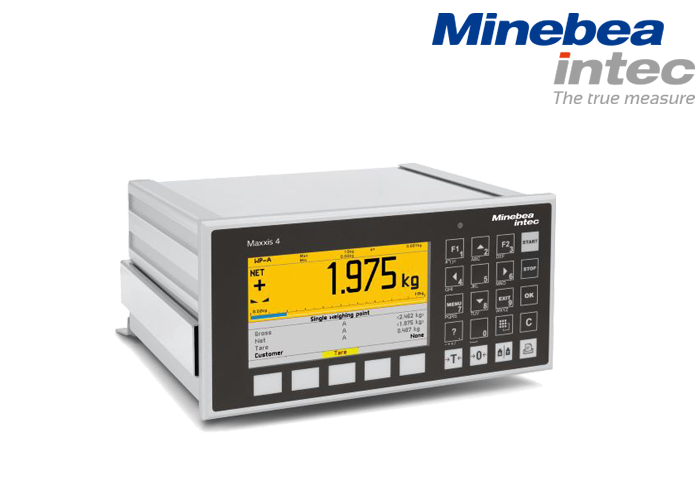

Features
■Data Integrity (DI) Support
■User management and password management functions included
■Compatible with load cells, digital load cells, platform scales, and electromagnetic platform scales (optional)
■Class of protection: IP65 (front panel section)
■Extensive options including RS-232C/RS485, analog and digital I/O
■Data backup and restore function (in SD memory card)
Specification
| Specification name | Specification contents |
|---|---|
| Class | OIML R76; Class Ⅲ 10000e acc. To EN45501 |
| Non-linearity | <0.003% |
| Load cell Nominal supply voltage | DC12V max160mA, with remote sensing function, max 8 x 650Ω load cells (min 75Ω), max 4 x 350Ω load cells |
| Temperature effects | Zero:<0.05uV/K RTI、Span:<±4ppm/K |
| Input signal range | 0～36mV |
| Minimum entry force sensitivity | 0.24 μV/d |
| Internal resolution | max 7,500,000 counts at 3mV/V |
| Conversion speed | 5～1600ms |
| Power supply | AC100-240V(-10/+10%), 50-60Hz, 32VA |
| Ambient operating temperature | -10℃～50℃ |
| Ambient operating humidity | 95%RH or less (no condensation) |
| Temperature during storage and transportation | -20℃～70℃ |
| Class of protection | IP65 (front panel section) |
| Standard interface | RS-232C, Ethernet TCP/IP, Modbus TCP, SD card port (SD memory card (8G) standard), USB port |
| Option | W1: A/D converter |
| Option1 | L8: 24VDC power supply (-10/+10%) |
| Option2 | L14: Cable clamp specification |
| Option3 | L15: Reinforced frame |
| Option4 | B15 (Option 1): RS-485 |
| Option5 | B25 (Option 2): RS-485 (with power supply for connection to IS electromagnetic platform scales) |
| Option6 | B16 (Option 1): Analog output 0/4-20 mA |
| Option7 | B26 (Option 2): Analog output 0/4-20 mA |
| Option8 | B17 (Option 1): Digital I/O 4 points |
| Option9 | B27 (Option 2): Digital I/O 4 points |
| Option10 | C21 (FB option): Profibus-DP interface |
| Option11 | C24 (FB option): DeviceNet interface |
| Option12 | C25 (FB option): CC-Link interface |
| Option13 | C26 (FB option): Profinet interface |
| Option14 | C27 (FB option): Ethernet/IP interface |
| Option15 | E5: Alibi memory audit trail function |
| Dimension (W x H x D) | 192 mm×96 mm×157 mm |
| Weight | Approx. 2 kg |
| Gross Weight | 3 kg |
However, one item from FB option and Option 1, and one item from Option 2.

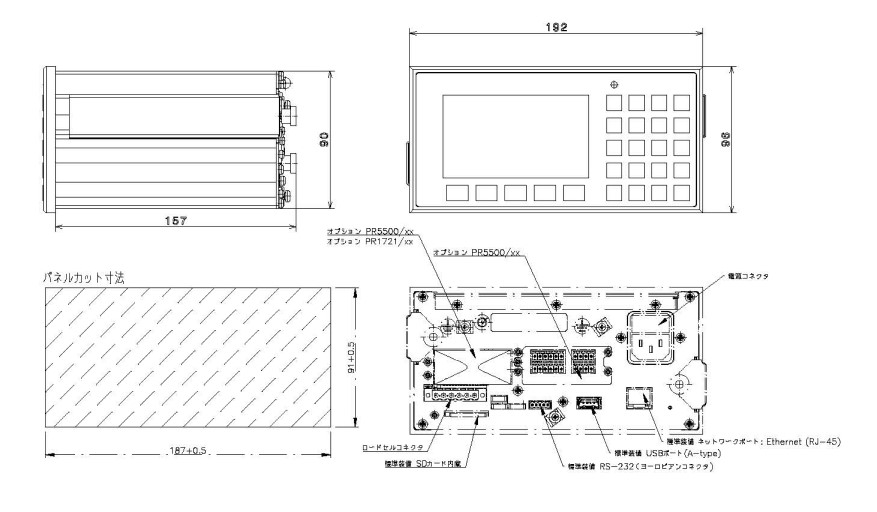

External view
